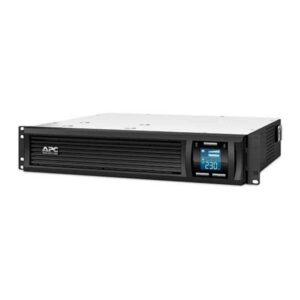

APC Smart-UPS 2200VA LCD 230V

Categories: , .

APC Smart-UPS 2200VA LCD 230V

APC smart-UPS 2200VA LCD is a smart network UPS that is perfect for servers, network devices such as the routers, switches, hubs, modems and others. This smart UPS has the reliable battery backup capacity to power through outrages or smoothly shutdown systems. The system is highly appreciated for its performance with the ability for reducing utility costs and less heat generation. The smart UPS is network manageable via serial, USB or optional Ethernet. It assures an effective performance during the time of voltage fluctuations and power outages.

Features

  • High online efficiency
  • Intuitive LCD interface
  • Adjustable voltage-transfer points
  • Adjustable voltage sensitivity
  • Avoid costly power problems
  • Save time with easy and convenient remote accessibility
  • USB connectivity

You can place the order online for APC smart-UPS 2200VA LCD 230V through Amaze Technologies.

Description
SMT2200I Features
APC Smart-UPS 2200VA LCD 230V
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Availability
Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.
Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.
Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.
Disconnected battery notification

Warns when a battery is not available to provide backup power.
Marketing Features
Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities
Technical Specifications
Output
Output power capacity

1.98kWatts / 2.2kVA
Max Configurable Power (Watts)

1.98kWatts / 2.2kVA
Nominal Output Voltage

230V
Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion

Less than 5% at full load
Output Frequency (sync to mains)

47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Topology

Line Interactive
Waveform type

Sine wave
Output Connections

(1) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time

6ms typical : 10ms maximum
