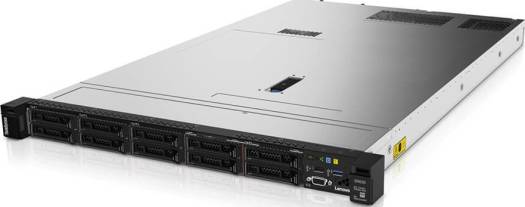

Lenovo ThinkSystem SR630

Lenovo ThinkSystem SR630 in Dubai, UAE – Lenovo delivers cost-effective, reliable and scalable solutions by combining industry-leading technology and the world’s best software-defined offerings with Lenovo ThinkShield, XClarity, and TruScale Infrastructure Services to manage the life cycle of your data center needs.
  • Form Factor/Height: 1U rack server
  • Processor (max)/Cache (max): Up to 2 second-generation Intel® Xeon® Platinum processors, up to 205W
  • Memory: Up to 9TB in 24x slots, using 128GB DIMMs; 2666MHz / 2933MHz TruDDR4
  • Expansion Slots: Up to 4x PCIe 3.0 slots (with two CPUs), including 1x dedicated PCIe for RAID adapter
  • Drive Bays: Up to 12 bays (includes 4x AnyBay): 3.5″: 4x hot-swap SAS/SATA; 2.5″: 4x hot-swap AnyBay + 6x hotswap SAS/SATA + 2x rear; or 8x hot-swap SAS/SATA; or 10x hot-swap U.2; plus up to 2x mirrored M.2 boot
  • HBA/RAID Support: HW RAID (up to 16 ports) with flash cache; up to 16-port HBAs
  • Security and Availability: TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port
  • Network Interface: 2/4-port 1GbE LOM; 2/4-port 10GbE LOM with Base-T or SFP+; 1x dedicated 1GbE management port
  • Power: 2x hot-swap/redundant: 550W/750W/1100W AC 80 PLUS Platinum; or 750W 80 AC PLUS Titanium
  • Systems Management: XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management
  • Operating Systems Supported: Microsoft, SUSE, Red Hat, VMware vSphere. Visit lenovopress.com/osig for more information.
  • Limited Warranty: 1- and 3-year customer replaceable unit and onsite service, next business day 9×5, optional service upgrades

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

  • Lenovo Think System SR630 Server 1U Rack – Xeon 4110
  • Lenovo Think System SR630 Server 1U Rack – Xeon 4114
  • Lenovo Think System SR630 Server 1U Rack – Xeon 5218

FEATURES

Featuring the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2), the SR630 server offers scalable performance and storage capacity. The SR630 server supports up to two processors, up to 2933 MHz memory speed, up to 3 TB of memory capacity with TruDDR4 DIMMs or up to 7.5 TB of memory capacity with a combination of TruDDR4 DIMMs and Intel DC persistent memory modules (DCPMMs), up to 12x 2.5-inch or 4x 3.5-inch drive bays with an extensive choice of NVMe PCIe SSDs, SAS/SATA SSDs, and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot, a dedicated storage controller slot, and up to 3x PCIe slots.

The SR630 server offers basic or advanced hardware RAID protection and a wide range of networking options, including selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR630 server, provides advanced service processor control, monitoring, and alerting functions.
