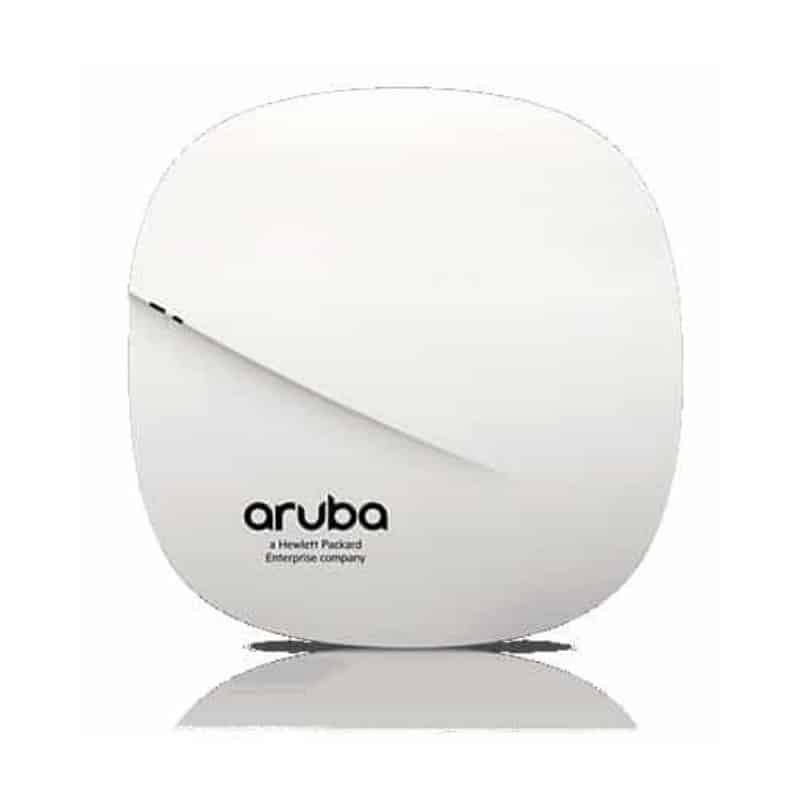

Aruba 300 Series

Aruba 300 Series

Aruba 300 Series wave 2 access points provides high performance and outstanding user experience for small to medium business environments. This entry level access point boost network efficiency and support the growing device demands on network. The high performance device supports simultaneous data transmission to multiple devices maximizing data throughout and improving network efficiency. Comes with the latest Aruba technologies, this wireless access point provides the customers with best WLAN performance. It also provides integrated Bluetooth capabilities to enable IoT based location services, asset tracking and mobile engagement services.

Features

  • ClientMatch technology
  • Intelligent power monitoring
  • Integrated wireless intrusion protection
  • Comprehensive protection against advanced online threats
  • Quality of service for unified communication apps
  • Minimizes interferences from 3G/4G cellular networks

Customers can place the order online for Aruba 300 Series wireless Access Point through Amaze Technologies.

Description
Overview

The entry-level Aruba 300 Series Wave 2 access points deliver high performance and superb user experience for medium density environments.

These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.

The 300 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor way finding, and proximity-based push notification capabilities.

Is this the right product for your business?

UNIQUE BENEFITS
Dual Radio 802.11ac access point with Multi-User MIMO
Supports up to 1,300 Mbps in the 5 GHz band (with 3SS/VHT80 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients)
Built-in Bluetooth Low-Energy (BLE) radio
Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time
Enables management of your deployment of battery-powered Aruba Beacons
Advanced Cellular Coexistence (ACC)
Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment. Quality of service for unified communication apps
Quality of service for app visibility and control
Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing
RF Management
Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs
The Aruba 300 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available
Intelligent app visibility and control
AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 2,500 enterprise apps or groups of apps
Security
Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats
Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys
Intelligent Power Monitoring (IPM)
Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities
For the 300 Series APs, the IPM power-save feature applies when the unit is powered by an 802.3af PoE source. By default, the USB interface will be the first feature to turn off if AP power consumption exceeds the available power budget. In rare cases it may be necessary to take additional power saving measures, but in most cases, the 300 Series APs will operate in unrestricted mode
CHOOSE YOUR OPERATING MODE
The Aruba 300 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.
Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 300 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding
Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows 300 Series Instant APs to become part of a WLAN that is managed by a Mobility Controller
Remote AP (RAP) for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, the Instant APs are factory-shipped to any site and configure themselves when powered up.
SPECIFICATIONS
AP-304 (controller-managed) and IAP-304 (Instant):
802.11ac – 5GHz 3×3 MIMO (1,300 Mbps max rate) and 2.4GHz 2×2 MIMO (300 Mbps max rate) radios, with a total of three dual-band RP-SMA connectors for external antennas
AP-305 (controller-managed) and IAP-305 (Instant):
802.11ac – 5GHz 3×3 MIMO (1,300 Mbps max rate) and 2.4GHz 2×2 MIMO (300 Mbps max rate) radios, with a total of three integrated omni-directional downtilt dualband antennas
WI-FI RADIO SPECIFICATIONS
AP type: Indoor, dual radio, 5GHz 802.11ac 3×3 MIMO and 2.4GHz 802.11n 2×2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5GHz: Three spatial stream Single User (SU) MIMO for up to 1,300 Mbps wireless data rate to individual 3×3 VHT80 client devices
5GHz: Two spatial stream Multi User (MU) MIMO for up to 867 Mbps wireless data rate to up to two (1×1 VHT80) MU-MIMO capable client devices simultaneously
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2×2 VHT40 client devices (300 Mbps for HT40 802.11n client devices)
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
2.400 to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
802.11b: BPSK, QPSK, CCK
802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
2.4GHz band: +18 dBm per chain, +21 dBm aggregate (2×2)
5GHz band: +18 dBm per chain, +23 dBm aggregate (3×3)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20 MHz, 40 MHz and 80 MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
802.11n (5GHz): 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1,300 (MCS0 to MCS9, NSS = 1 to 3 for VHT20/40/80
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80
802.11n/ac packet aggregation: A-MPDU, A-MSDU
