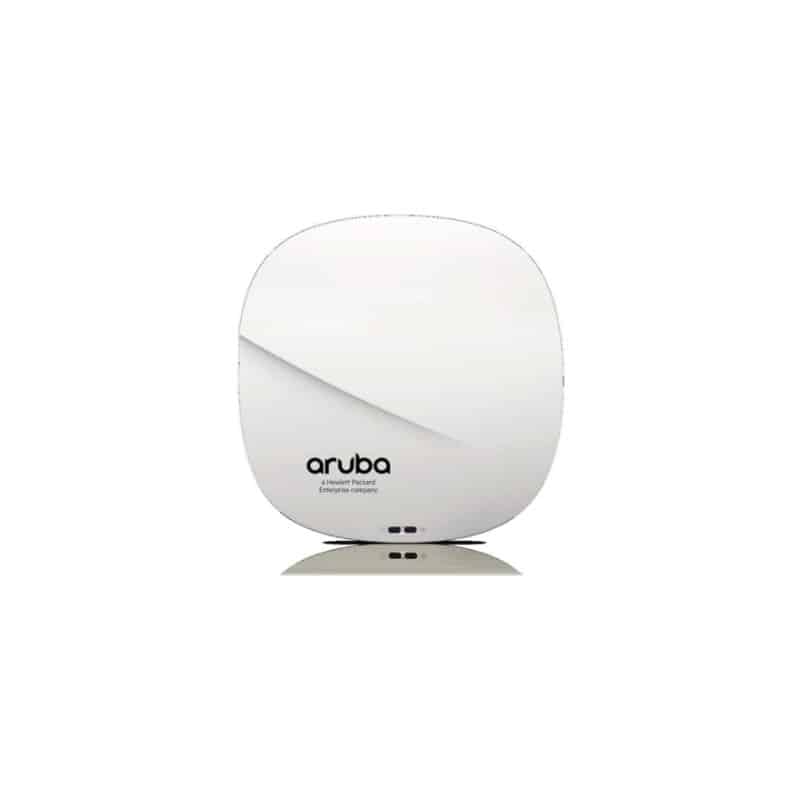

Aruba 310 Series

Aruba 310 Series

Aruba 310 series wireless access point delivers excellent experience for mobile devices, IoT devices and applications. Enriched with the features like MU-MIMO, advanced Aruba ClientMatch radio management, and Aruba beacon technologies, the 310 series enables all wireless digital work environment in a reliable and effective way. It supports multi user MIMO and 4 spatial streams to provide concurrent data transmission, maximizing data throughput and improving network efficiency. It features the ClientMatch technology and integrated blue tooth capabilities. The integrated wireless intrusion protection offers threat protection and reduce the need for separate security devices. Aruba 310 wireless access point is ideal for small to medium business environments

Features

  • ClientMatch technology
  • Wireless intrusion protection
  • Intelligent power monitoring
  • Integrated wireless intrusion protection
  • Comprehensive protection against advanced online threats

Customers in UAE can place the order online for Aruba 310 series wireless access point through Amaze Technologies.

Description
Overview

The Aruba 310 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices, Internet of Things (IoT) devices, and applications in dense office environments.

These Wave 2 access points deliver multi-user MIMO (MU-MIMO) aware ClientMatch to boost network efficiency and support the growing device density demands on your network.

These APs have an integrated BLE Beacon to remotely manage battery-powered Aruba Beacons.

Is this the right product for your business?

UNIQUE BENEFITS
Dual Radio 802.11ac access point with Multi-User MIMO
Supports up to 1,733Mbps in the 5GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300Mbps in the 2.4 GHz band (with 2SS/HT40 clients).
Built-in Bluetooth Low-Energy (BLE) radio
Enables location based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.
Advanced Cellular Coexistence (ACC)
Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment.
Quality of service for Unified Communication apps
Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat and desktop sharing.
RF Management
Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
The Aruba 310 Series APs can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.
Support for additional 5GHz bands
Supports software upgrade to enable additional 5GHz spectrum when governments expand available frequencies.
Intelligent app visibility and control
AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for over 1,500 enterprise apps or groups of apps.
Security
Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.
Intelligent Power Monitoring (IPM):
Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities
For the 310 Series access points, the IPM power-save feature applies when the unit is powered by an 802.3af PoE source. By default, the USB interface will be the first feature to turn off if AP power consumption will exceed the available power budget. In rare cases, it may be necessary to take additional power saving measures, but in most cases, the 310 Series APs will operate in unrestricted mode.
CHOOSE YOUR OPERATING MODE
Aruba 310 Series APs offer a choice of operating modes to meet your unique management and deployment requirements.
Controller-managed mode – When managed by Aruba Mobility Controllers, Aruba 310 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding.
Aruba Instant mode – In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – the entire process takes about five minutes. If WLAN requirements change, a built-in migration path allows 310 Series instant APs to become part of a WLAN that is managed by a Mobility Controller.
Remote AP (RAP) for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Instant APs are factory-shipped to any site and configure themselves when powered up.
SPECIFICATIONS
AP-314 (controller-managed) and IAP-314 (Instant):
802.11ac – 5GHz 4×4 MIMO (1,733Mbps max rate) and 2.4GHz 2×2 MIMO (300Mbps max rate) radios, with a total of four dual-band RP-SMA connectors for external antennas
AP-315 (controller-managed) and IAP-315 (Instant):
802.11ac – 5GHz 4×4 MIMO (1,733Mbps max rate) and 2.4GHz 2×2 MIMO (300Mbps max rate) radios, with a total of four integrated omni-directional downtilt dual-band antennas
WI-FI RADIO SPECIFICATIONS
AP type: Indoor, dual radio, 5GHz 802.11ac 4×4 MIMO and 2.4GHz 802.11n 2×2 MIMO
Software-configurable dual radio supports 5GHz (Radio 0) and 2.4GHz (Radio 1)
5GHz: Four spatial stream Single User (SU) MIMO for up to 1,733Mbps wireless data rate to individual 4×4 VHT80 or 2×2 VHT160 client devices
2.4GHz: Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2×2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
5GHz: Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
2.400 to 2.4835GHz
5.150 to 5.250GHz
5.250 to 5.350GHz
5.470 to 5.725GHz
5.725 to 5.850GHz
Available channels: Dependent on configured regulatory domain
Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
Supported radio technologies:
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
802.11b: BPSK, QPSK, CCK
802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
2.4GHz band: +18 dBm per chain, +21dBm aggregate (2×2)
5GHz band: +18 dBm per chain, +24dBm aggregate (4×4)
Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks
Maximum ratio combining (MRC) for improved receiver performance
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
Short guard interval for 20MHz, 40MHz, 80MHz and 160MHz channels
Space-time block coding (STBC) for increased range and improved reception
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
Transmit beam-forming (TxBF) for increased signal reliability and range
Supported data rates (Mbps):
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80/160
802.11n/ac packet aggregation: A-MPDU, A-MSDU
