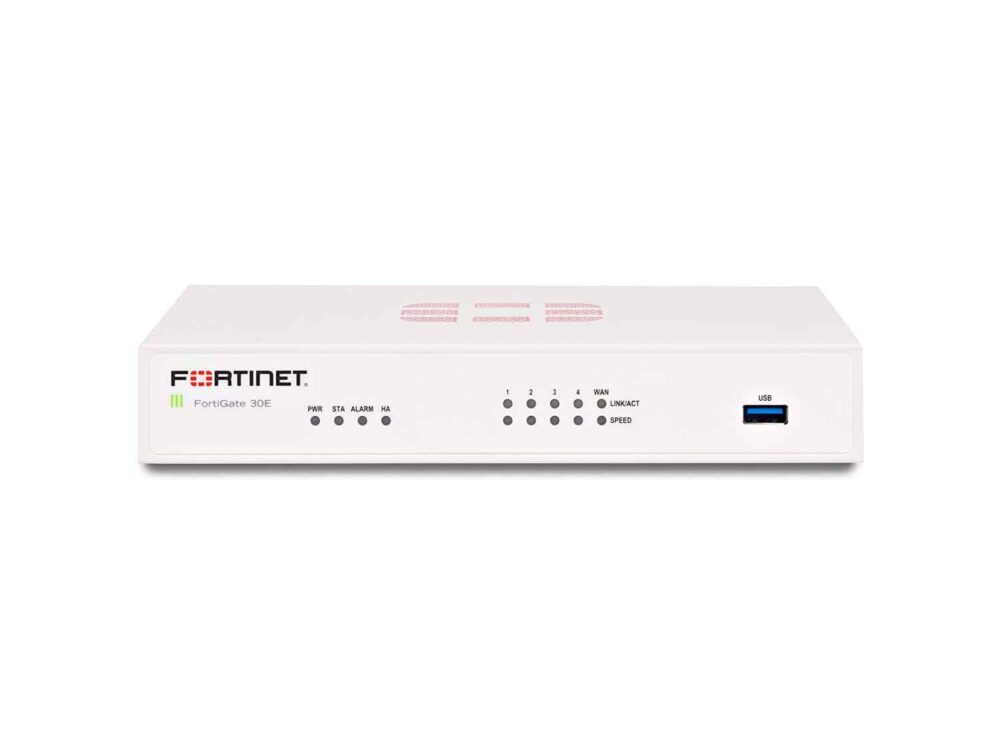

FORTINET FortiGate 30E Firewall

Categories: , .

FORTINET FortiGate 30E Firewall

The FortiGate 30E series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.

  • Secure SD-WAN
  • Unified Threat Management

Interfaces
1. USB Port
2. Console Port
3. 1x GE RJ45 WAN Port
4. 4x GE RJ45 Switch Ports

  • Hardware Specifications
    GE RJ45 Switch Ports 4
    GE RJ45 WAN Port 1
    USB Port 1
    Console (RJ45) 1
    Wireless Interface – 802.11 a/b/g/n (Only in FORTIWIFI 30E)
  • System Performance — Enterprise Traffic Mix
    IPS Throughput 2 300 Mbps
    NGFW Throughput 2, 4 200 Mbps
    Threat Protection Throughput 2, 5 150 Mbps
  • System Performance
    Firewall Throughput 950 Mbps
    Firewall Latency (64 byte UDP packets) 130 μs
    Firewall Throughput (Packets Per Second) 180 Kpps
    Concurrent Sessions (TCP) 900,000
    New Sessions/Second (TCP) 15,000
    Firewall Policies 5,000
    IPsec VPN Throughput (512 byte) 1 75 Mbps
    Gateway-to-Gateway IPsec VPN Tunnels 200
    Client-to-Gateway IPsec VPN Tunnels 250
    SSL-VPN Throughput 35 Mbps
    Concurrent SSL-VPN Users
    (Recommended Maximum, Tunnel Mode)
    100
    SSL Inspection Throughput (IPS, avg. HTTPS) 3 125 Mbps
    SSL Inspection CPS (IPS, avg. HTTPS) 3 120
    SSL Inspection Concurrent Session
    (IPS, avg. HTTPS) 3
    45,000
    Application Control Throughput (HTTP 64K) 2 400 Mbps
    CAPWAP Throughput (HTTP 64K) 850 Mbps
    Virtual Domains (Default / Maximum) 5 / 5
    Maximum Number of FortiSwitches Supported 8
    Maximum Number of FortiAPs
    (Total / Tunnel Mode)
    2 / 2
    Maximum Number of FortiTokens 500
    Maximum Number of Registered FortiClients 200
    High Availability Configurations Active/Active, Active/Passive, Clustering
  • Dimensions
    Height x Width x Length (inches) 1.61 x 8.27 x 5.24
    Height x Width x Length (mm) 41 x 210 x 133
    Weight 1.982 lbs (0.899 kg) (FORTIWIFI 30E - 2.008 lbs 0.911 kg)
    Form Factor Desktop
  • Environment
    Power Required 100–240V AC, 50–60 Hz (External DC Power
    Adapter, 12 VDC)
    Maximum Current 100V / 0.6A, 240V / 0.4A
    Power Consumption (Average / Maximum) 13 / 15 W
    Heat Dissipation 52 BTU/h
    Operating Temperature 32–104°F (0–40°C)
    Storage Temperature -31–158°F (-35–70°C)
    Humidity 10–90% non-condensing
    Noise Level Fan-less 0 dBA
    Operating Altitude Up to 7,400 ft (2,250 m)
  • Compliance
    Regulatory Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
  • Certifications
    ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
