MikroTik RB2011UiAS-RM

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

There is PoE output function for port #10 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

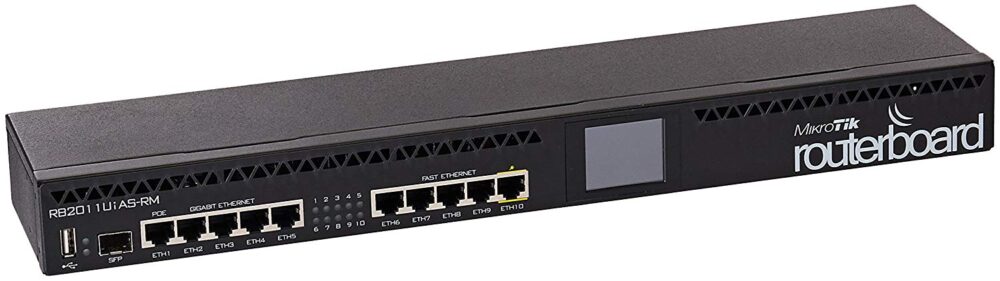

RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply

Specifications
Details
Product code RB2011UiAS-RM
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C
Suggested price $119.00
Powering
Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE out Passive PoE
PoE-out ports Ether10
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max out per port output (input < 30 V) 510 mA
Max total out (A) 510 mA
Max power consumption 6 W
Ethernet
Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5
Fiber
Details
SFP DDMI Yes
SFP ports 1
Peripherals
Details
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 2
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE/RED, EAC, ROHS
