MikroTik RB912UAG-5HPnD-OUT BASE BOX5

Category: .

MikroTik RB912UAG-5HPnD-OUT BASE BOX5

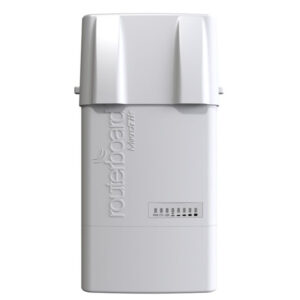

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.

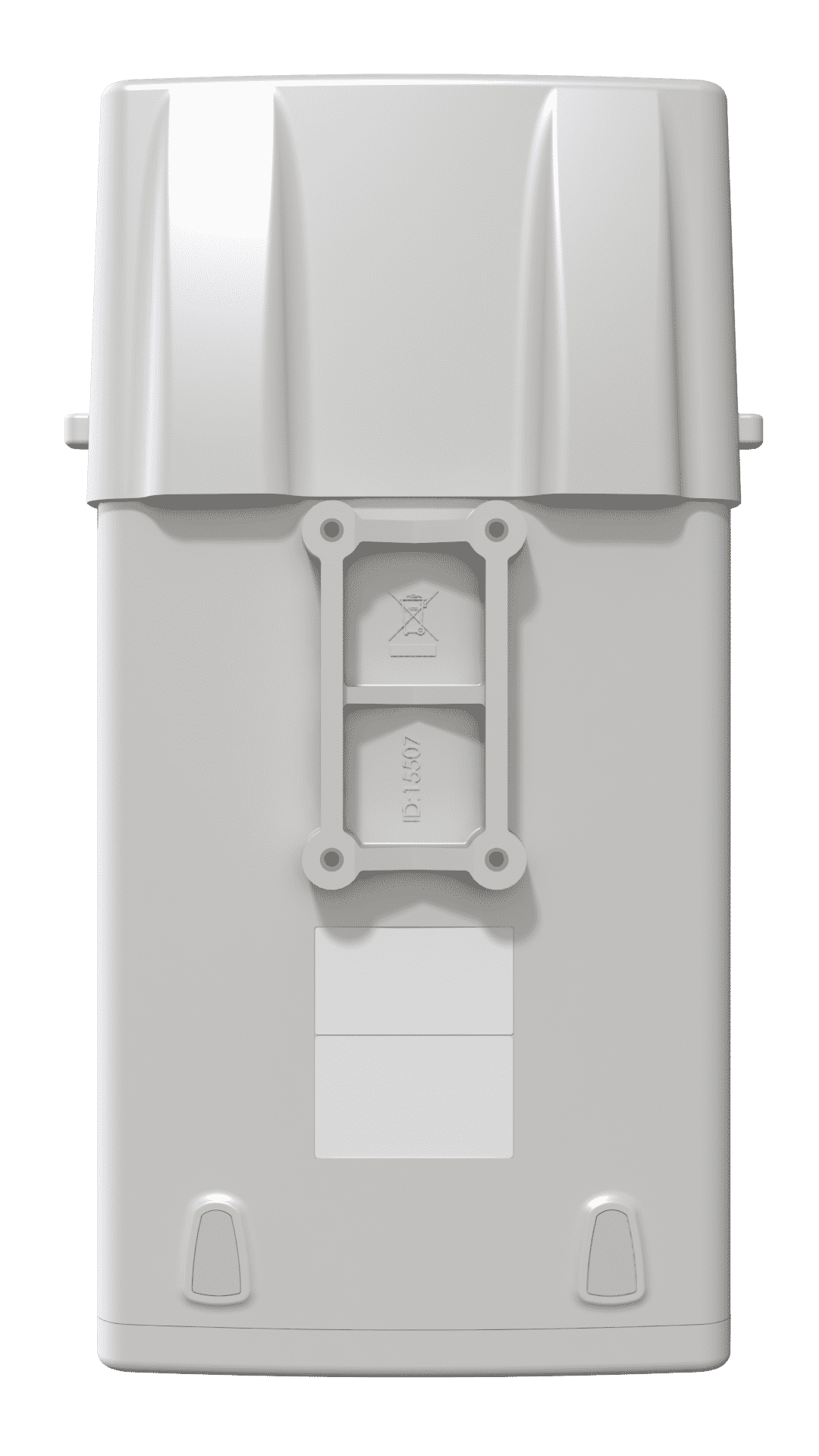

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.

Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount

– RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– RB912UAG-5HPnD-OUT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations)

Specifications
Details
Product code RB912UAG-5HPnD-OUT
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 246x135x50mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 70°C
Suggested price $89.00
Powering
Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 1 (PoE-IN)
Max power consumption 12 W
Wireless
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Wireless 5 GHz chip model AR9342
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100/1000 Ethernet ports 1
Peripherals
Details
Number of SIM slots 1 Modem (Mini SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Certification & Approvals
Details
Certification CE/RED, FCC, IC, EAC, ROHS
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 27 -78
MCS0 30 -96
MCS7 26 -75
