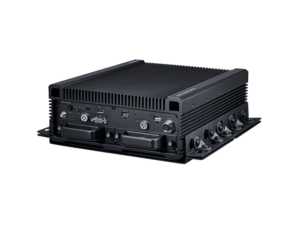

Samsung TRM-1610M

Samsung TRM-1610M

16CH Mobile Network Video Recorder
Up to 16CH 12megapixel supported
H.265, H.264, MJPEG codec supported
WiseStream support
SUNAPI / ONVIF camerea recording
Max. 128Mbps recording
Plug & play by 4 PoE / PoE+ ports
M12 connector (TRM-1610M)
2 SATA (Front-swap)
– Max. 2TB (HDD, Non-RAID mode)
– Max. 4TB (SSD, Non-RAID mode)
RAID 1 support

DISPLAY
N/W
Camera
Inputs / Resolution
Max. 16CH (4 PoE, M12) / CIF ~ 12MP
Max. 16CH (4 PoE, RJ-45) / CIF ~ 12MP
Protocols
SUNAPI, ONVIF
Live
Local Display
HDMI / VGA
Multi Screen Display
[Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto sequence,
[Web] 1 / 4 / 9 / 16 / Auto sequence
Performance
[Local monitor] 12M (30fps), 8.3M (120fps), 1080p (480fps)
PERFORMANCE
Operating System
Embedded
Linux
Recording
Compression
H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth
Max. 128Mbps
Resolution
CIF ~ 12MP
Mode
Manual, Schedule (Continuous / Event), Event (Pre / Post), Emergency
Retention
Retention per channel (1~400 days)
Event Trigger
Alarm input (16), Video loss, Camera event (Sensor, MD, Video analytics, Defocus), G-Sensor (3 Axis)
Event Action
E-mail, Alarm out, Buzzer, Monitor out
Search &
Playback
Playback Bandwidth
32Mbps (16CH simultaneously)
User
Max. 4 users (Local 1, Remote 3)
Mode
Date & Time (Calendar) / Event log list / Text search / Smart search
Simultaneous Playback
Max. 16CH (Local monitor, CMS)
Resolution
CIF ~ 12MP
Fish-eye Dewarping
Web / CMS
Playback Control
Fast/Slow Forward/Backward, Move one step up/down
Storage
Default Built-in
0TB ~ 4TB
Internal HDD
2 SATA (Front-swap) - Max. 2TB (HDD, Non-RAID mode) - Max. 4TB (SSD, Non-RAID mode)
RAID
RAID-1
Backup
File Backup
Exe (GUI), JPG / AVI (Excluding GPS information) (Network)
Function
Multi channel (Upto 16CH) Play, Date-time / Title / GPS display
Type / Wifi Backup Performance
Auto (Wifi), Manual (HDD / SSD) / Max. 150Mbps (IEEE802.11ac)
Sensor
Input / Output
16 / 6
Audio
Input / Compression
16CH (Network) / G.711, G.726, AAC (16 / 48KHz)
Audio Communication
2-way
NETWORK
Interface
M12 (Gigabit ethernet x 2)
RJ-45 (Gigabit ethernet x 2)
Protocol Support
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS
Hanwha DDNS
Transmission Bandwidth
Wired (LAN)
Max. 256Mbps
Max. Remote Users
Search 3 / Live unicast 10 / Live multicast 20
IP
IPv4
Security
IP address filtering, User access log, 802.1x, Encryption
Wireless
WIFI
Internal (802.11 n (2.4G) / ac (5G), Dual antenna (MIMO)
3G/LTE
Support external 3G / LTE router (Ethernet)
Language
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
OS
Window 7, 8, 10, Mac OS X (10.8 or above)
Web Browser
MS IE, Google Chrome, Mac Safari
Viewer Software
Type
SSM Transportation, WebViewer, Wisenet Mobile Viewer
CMS Support
Support SDK / CGI (SUNAPI) for integration to 3'rd party VMS
FUNCTIONS
Camera Setup
Register
Auto mode, Manual mode
Setup Items
IP address, Add profile edit, Bitrate, Compression, Camera MD setup, Camera video setup (Simple focus, Brightness / Contrast, Flip / Mirror,
IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway View setup, Camera webpage, WiseStream Off / On
Camera Control
PoE Power Control
Monitor PoE/PoE+ power consumption, Off / On control for each
PoE/PoE+ camera, Remote reset for each PoE/PoE+ camera
Time Sync.
NVR time protocol for PoE/PoE+ camera (Time sync based on NVR time), GPS time sync
PTZ
Control / Preset
Via GUI, WebViewer / 300 Presets
Smart Phone
Support Model / Protocol Support
I-Phone, Android / RTP, RTSP, HTTP, CGI (SUNAPI)
Control
Live (16CH) : Multi-profile support, Playback (1CH)
Max. Remote Users
Search 3 / Live unicast 10 / Live multicast 20
System Control
Mouse, Web
INDICATOR / INTERFACE
Front
Indicator
LED (Status indicator) 3EA : Power 1, Alarm 1, Record 1
Power Switch / Audio
1ea / Out (1ea, Line)
HDMI / VGA
2ea (Support Live screen upto 16 div. mode, Clone)
HDMI : Upto 4K (3840 x 2160), VGA : Max. 1080p
USB / GPS
3ea (M12 x 1, USB-A x 2) / 1ea (SMA, F)
HDD Key Lock
2ea
Connections
Ethernet
LAN / WAN : 2ea (1Gbps, M12)
PoE Camera Input : 4ea (100Mbps, M12)
LAN / WAN : 2ea (1Gbps, RJ-45),
PoE Camera input : 4ea (100Mbps, RJ-45)
Control I/O
DB15 1ea (External control box)
(1) Status LED (2) G-Sensor (3 Axis) (3) Emergency recording button (4) Power Switch (5) Audio out
Alarm
DB25 1ea (1) In (16ea) (2) Out (6ea)
Serial / WiFi
Reserved / 2ea (RP-SMA, F)
Reset / Power Cord
Switch 1ea / 6pin connector 1ea
SYSTEM
Power Management
Shutdown Delay
Max. 72Hrs (User selectable), Support CGI shutdown
Startup Delay
0sec (Default) ~ 10min (User selectable)
Log
Log List
Max. 20,000 (System log, Event log each)
GENERAL
Electrical
Input Voltage / Current
9 ~ 36V DC (Battery power detection & Low power limit setup)
Power Consumption / PoE Budget
Low temperature in use: Max. 93W, Room temperature: Max. 67W / Max. 32W
Environmental
Storage Temperature / Humidity
-25°C ~ +55°C (-13°F ~ +131°F) : HDD installed
-40°C ~ +70°C (-40°F ~ +158°F) : Industrial SSD installed / 20% ~ 85% RH
Mechanical
Color / Material
Black / Aluminium
Dimensions (WxHxD)
250 x 99 x 303mm (9.84" x 3.89" x 11.92")
Weight
7.35Kg (16.2 lb)
STANDARD APPROVAL
General
CE, FCC, UL
Special
EN-50155 (Rail shock / Vib), EN-50121-4 (Railway EMC)
Control Box
INDICATOR / INTERFACE
Top
Indicator
LED (Status indicator) 6ea : Power 1, Alarm 1, Record 1, GPS 1, RAID 1, HDD Error 1
Emergency Button
1ea
Connections
Audio / Power Switch
Out 1ea (RCA, Line) / 1ea
Main I/O
1ea (DB9)
SYSTEM
Mechanical
Color / Material
Black / Aluminium
Dimensions (WxHxD)
Approx. 118 x 29.2 x 70mm (4.64" x 1.15" x 2.75")
