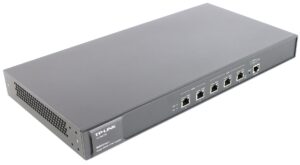

TP-Link TL-ER5120

Gigabit Load Balance Broadband Router
TL-ER5120
64-bit dedicated dual-core processor and 2 Gbit DDRIII high-speed memory for outstanding performance
Equipped with 1 Gigabit WAN port, 1 Gigabit LAN port, and 3 adaptable Gigabit WAN/LAN ports
Load Balancing automatically selects the best route to the destination according to the load
The captive portal provides convenient guest authentication while promoting your business
Abundant security features including ARP Inspection, DoS Defense, URL/Keyword Domain Filter and Access Control
Professional 4KV lightning protection keeps your investment safe1

Reviews

There are no reviews yet.

Add a review

Product Enquiry

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE802.3u, IEEE802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, PPTP, L2TP
Interface 1 Gigabit WAN port
3 Gigabit LAN/WAN ports
1 Gigabit LAN port
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply Internal Universal Power Supply
AC100-240V~ 50/60Hz Input
Flash 32MB
DRAM DDRIII 256MB
LED PWR, SYS, Link/Act, Speed, WAN
Dimensions ( W x D x H ) 17.3 x 8.7 x 1.7 in.(440x220x44 mm)
19-inch Standard Rack-Mount Width, 1U Height
PERFORMANCE
Concurrent Session 150K
NAT Throughput 800Mbps
BASIC FUNCTIONS
WAN Connection Type Static/Dynamic IP
PPPoE/Russian PPPoE
PPTP/Russian PPTP
L2TP/Russian L2TP
Bigpond Cable
DHCP DHCP Server/Client
DHCP Address Reservation
MAC Clone Modify WAN MAC Address
IPTV Bridge, Custom
IPv6 IPv6 Support
VLAN 802.1Q VLAN, Port VLAN
TRANSMISSION
Load Balance Intelligent Load Balance
Link Backup (Timing, Failover)
Online Detection
NAT One-to-One NAT
Multi-nets NAT
Virtual Server
Port Triggering
FTP/H.323/SIP/IPsec/PPTP ALG
UPnP
Routing Static Routing
Policy Routing
Session Limit IP-based Session Limit
Bandwidth Control IP-based Bandwidth Control
SECURITY
Attack Defense TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering MAC Filtering
URL/Keywords Filtering
ARP Inspection Sending GARP Packets
ARP Scanning by WAN/LAN
IP-MAC Binding
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication Local User Authentication
Radius Sever Authentication
Onekey Online
