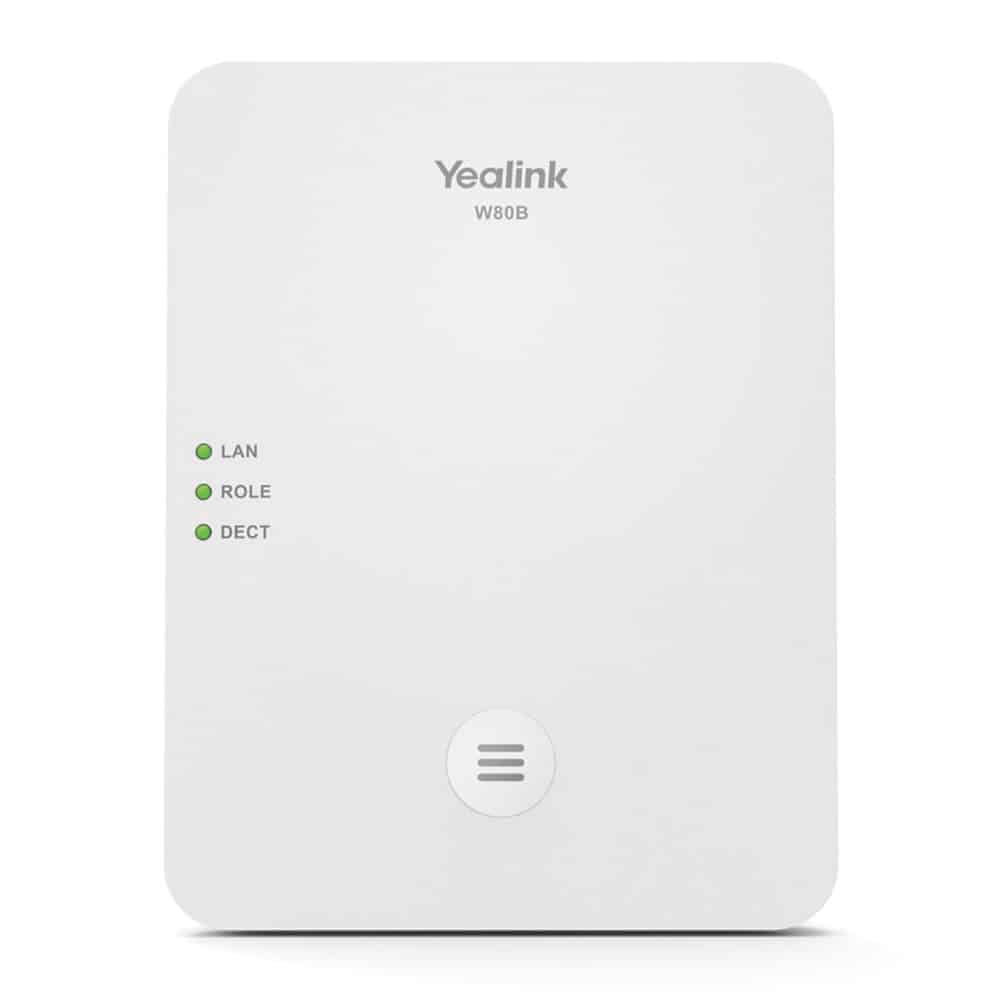

Yealink W80B Cordless DECT IP Multi-Cell Base Station

Categories: , .

Yealink W80B Cordless DECT IP Multi-Cell Base Station

Yealink W80B, a DECT IP multi-cell base station, is designed to provide the organizations who require wireless coverage with the full ease of deployment. Combined with DECT base station and DECT manager, this Yealink DECT multi-cell system intends to create an extremely scalable and reliable solution for the organizations of any size and any shape. The system supports up to 100 handsets and 100 simultaneous calls, this solution not only ensures one call in each handset, but also allows you to get rid of the limited wireless coverage of only one base station. Meanwhile, the system works with Yealink W53H and W56H handsets with seamless roaming and handover of the calls, making freely mobile communication in and between each zone achievable. Yealink W80B joins the modern, compact design with Yealink HD voice quality, which is wrapped with the full-duplex technology and Opus, that setting free your ears and giving you an elaborate audio experience.

  • Phone Features
    > Sync over the air
    > Up to 100 simultaneous calls
    > Up to 30 base stations
    > Up to 8 WB (4 active handsets) calls per base
    > Up to 8 NB calls per base
    > Up to 100 handsets
    > Up to 100 VoIP accounts
    > Up to 2 simultaneous calls per handset
    > Call hold, call transfer, 3-way conference
    > Switching between calls
    > Call waiting, mute, silence, DND
    > Caller ID with name and number
    > Anonymous call, Anonymous call rejection
    > Call forward (always/busy/no answer)
    > Speed dial, voicemail, redial
    > Message Waiting Indication (MWI)
    > Music on hold (server-based)
    > Local phonebook for up to 100 entries per
    handset
    > Remote phonebook/LDAP
    > Phonebook search/import/export
    > Call history (all/missed/placed/received)
    > Reset to factory, reboot
    > Keypad lock, emergency call
    > Broadsoft directory, BroadSoft call log
    > Broadworks feature key synchronization
    > Shared Call Appearance (SCA)
  • Management
    > Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
    > Auto-provision with PnP
    > Handset upgrade: OTA (Over-The-Air)
  • Audio Features
    > Full-duplex speakerphone
    > Hearing Aid Compatibility (HAC) compliant
    > DTMF
    > Wideband codec: Opus, AMR-WB (optional), G.722
    > Narrowband codec: AMR-NB (optional), PCMU,
    PCMA, G.726, G.729, iLBC
    > VAD, CNG, AGC, PLC, AJB
  • Network Features
    > SIP v1 (RFC2543), v2 (RFC3261)
    > SNTP/NTP
    > VLAN (802.1Q and 802.1P)
    > 802.1x, LLDP
    > STUN Client (NAT Traversal)
    > UDP/TCP/TLS
    > IP assignment: static/DHCP
    > Support outbound proxy server backup
  • Security
    > Open VPN
    > Transport Layer Security (TLS)
    > HTTPS (server/client), SRTP
    > Digest authentication
    > Secure configuration file via AES encryption
    > Support SHA256/SHA512/SHA384
    DECT
    > Frequency bands:
    1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
    > DECT Standards: CAT-iq2.0
  • Interface
    > 1 x RJ45 10/100M Ethernet port
    > Power over Ethernet (IEEE 802.3af), Class 1
  • Physical Features
    > Indoor Range: 20m~50m (The ideal distance is 50m)
    > Outdoor Range: 300m (in ideal conditions)
    > Wall mountable
    > Three LED indicators on W80B:
    - 1 x DECT LED
    - 1 x Role LED
    - 1 x LAN (Power Indicator & Network Status) LED
    > External Yealink AC adapter:
    AC 100-240V Input and DC 5V/1.2A Output
    > Color: Pearl White
    > Dimension: 130 mm x 100 mm x 25.1 mm
    > Operating humidity: 10~95%
    > Operating temperature: 0~+40°C (+32~104°F)
  • Package Features
    > Package content:
    - W80B Base Station
    - Expansion Screws
    - Quick Start Guide
    - Power Adapter (optional)
    > Qty/CNT: 10 PCS
    > Giftbox size: 174 mm x 180 mm x 63 mm
    > Carton meas: 375 mm x 336 mm x 187 mm
    > N.W: 2.56 kg
    > G.W: 3.13 kg
