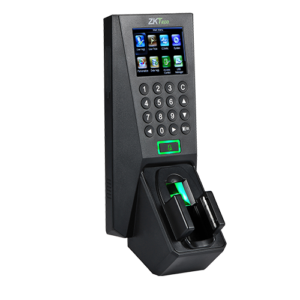

FV350 is a multi-biometric reader capable of capturing and processing finger vein and fingerprint biometric data at the same time. Ergonomic, intuitive and highly secured, FV350 leads us to a new era of enhancing security with biometrics. Its infrared rays illuminates the vein pattern which is then converted into a biometric template. Both the vein and fingerprint templates are then stored in the database for subsequent matching.
Core Board
ZMM220
Communication
TCP/IP, RS485
Vein Capacity
1,000
Fingerprint Capacity
1,000
RF Card
EM, IC Card (optional 2,000)
Auxiliary terminal
1 Aux. input
Display
2.8-inch capacitive screen
Power Supply
DC 12V 3A
Operating Temperature
-10°C ~ 45°C
Dimension
232mm × 91mm × 117mm (L*W*H)
SDK
PULL SDK (new firmware)
