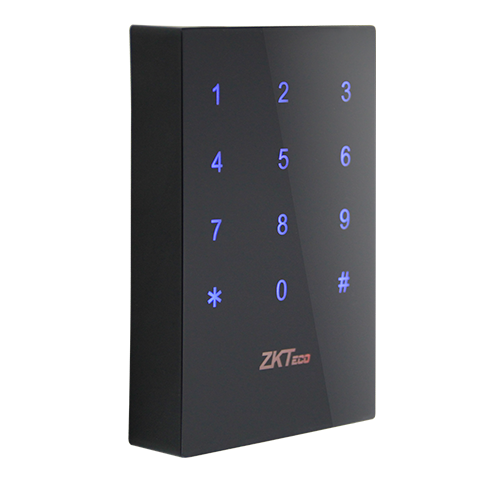

Model
KR702E / KR702M
Wiegand Signal
KR702E: Wiegand 26
KR702M: Wiegand 34
Power Supply
12V DC, < 90mA Effective Distance 0 ~ 8cm (Different according to different working conditions and different card) Read Time < 80ms Operating Frequency KR702E: 125KHz KR702M: 13.56MHz Operating Temperature 0 °C - 70 °C Operating Humidity 20% - 80% Dimension 113 x 75 x 16mm (LxWxH)
