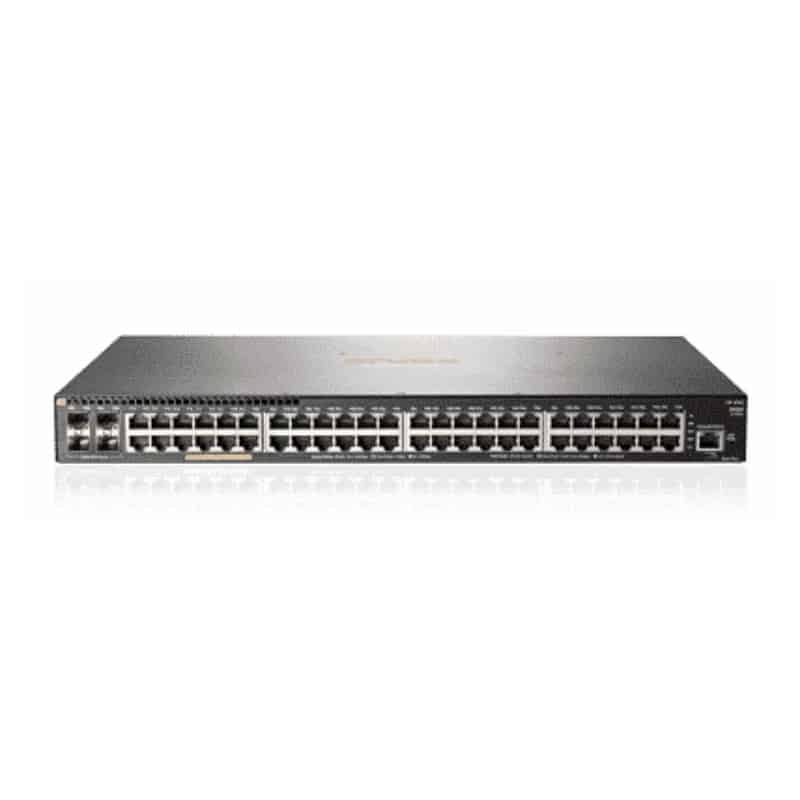

Aruba 2930F 48G 4SFP+ Switch (JL254A)

Categories: , .

Aruba 2930F 48G 4SFP+ Switch (JL254A)

Aruba 2930F 48G 4SFP + Switch (JL254A) designed for smart digital workspaces delivers outstanding performance for mobile users with an integrated wired and wireless approach. This Layer 3 Network Switch has the built-in uplinks and is PoE integrated and the device is easy to deploy and manage. It comes with advanced security and management tools like Aruba Air Wave – a powerful and easy to use network operations system that gives visibility into devices, users and applications and Aruba Central – a unified cloud-based network operations system that simplifies management, deployment and optimization of wireless, wired and WAN environments. The device can be quickly set up with zero touch provisioning.

Features

  • Cost-effective and highly reliable
  • Wired and wireless support
  • Supports advanced security and network management via Aruba Air Wave and Aruba Central.
  • Simplified configuration and management
  • Resiliency and availability
  • Highly flexible and zero touch provisioning

Customers can place the order online for Aruba 2930F 48G 4SFP + Switch (JL254A) through Amaze Technologies.

Description
Technical Specifications
Differentiator

Popular Aruba 52-port Gig + 10G access switch.
This model has 48x 10/100/1000 ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity.
Ports

(48) RJ-45 autosensing 10/100/1000 ports
(4) SFP+ 1/10GbE ports
PHY-less
Memory and processor

Dual Core ARM Coretex @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC
Latency

1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs
Throughput

up to 112 Mpps
Switching capacity

176 Gbps
Management features

Aruba AirWave
Central Network Management
IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
Input voltage

100 – 127 / 200 – 240 VAC, rated
Power consumption

46.6 W (maximum)
Heat dissipation

157.2 BTU/hr (165.8 kJ/hr)
Minimum dimensions ( H x W x D)

4.39 x 44.25 x 24.63 cm

Weight

3.1 kg

Warranty

Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Features
High-Performance Access Layer Switches
The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.

Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.

Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.

Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.

Performance and Power at the Edge
The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.

Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.

Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.

Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.

Security and Quality of Service You Can Rely on
The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.

Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.

Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.

Simplify with Integrated Wired/Wireless Management
The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.

Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.

Cloud-based management supported by Aruba Central.

RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.

Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
