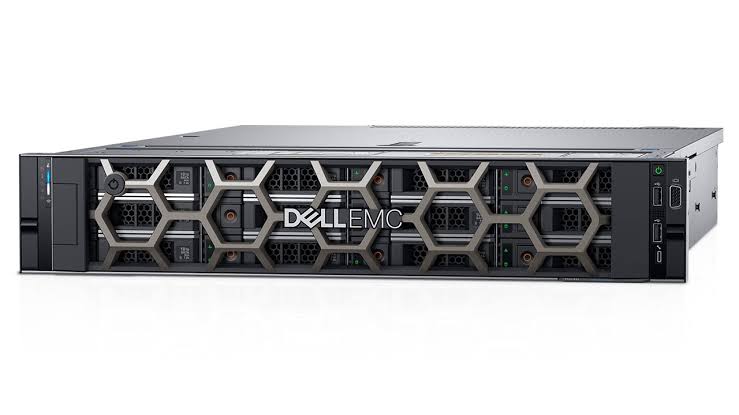

Dell PowerEdge R540 Rack Server

Dell PowerEdge R540 Rack Server
Our modern compute platforms are built to scale easily and take advantage of technologies that lift application performance. The PowerEdge R540 rack server combines affordably and versatility, so you can adapt to a variety of applications and meet future demands.

Description
Tech Specs & Customization
Processor
Up to two Intel® Xeon® Scalable processors, up to 20 cores per processor

Bezel
Optional LCD bezel or security bezel

Dimensions & Weight
Form factor
2RU

Chassis depth
Max depth: 707.74 mm (w/bezel)
Max depth: 693.81 mm (w/o bezel)

Drive Bays
Front drive bays: Up to 12 x 3.5” SAS/SATA HDD max 168TB
Rear drive bays: Up to 2 x 3.5 SAS/SATA HDD max 28TB
Optional DVD-ROM, DVD+RW

Embedded Management
IPMI 2.0 compliant
iDRAC9 with Lifecycle Controller (Basic, Express, Enterprise)
Quick Sync 2 wireless module optional

Fans
Hot plug power supplies with full redundancy option

I/O and Ports
Network options
2 x 1GE LOM
+ (optional) LOM Riser 2 x 1GE or 2 x 10GE SFP+ or 2 x 10GE BaseT

Front ports
Video, 1 x USB 2.0, dedicated IDRAC Direct USB

Rear ports
Video, serial, 2 x USB 3.0, dedicated iDRAC network port

PCIe
Non rear storage config:
1 x FH/FL + 1 x HH/HL (2U Right riser) slots + 3HH/HL slots
Rear storage config:
1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)

Memory*
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666 MT/s, 1TB* max

Management
Embedded / At-Server
iDRAC9 with Lifecycle Controller (Express, Enterprise)
iDRAC Direct
iDRAC REST API with Redfish
Quick Sync 2 BLE/wireless module

Consoles
OpenManage Enterprise
OpenManage Essentials
OpenManage Power Center

Mobility
OpenManage Mobile

Tools
iDRAC Service Module
OpenManage Server Administrator
OpenManage Storage Services
Dell Repository Manager
Dell System Update
Dell Server Update Utility
Dell Update Catalogs

OpenManage Integrations
Microsoft® Systems Center
VMware® vCenter™
BMC software (available from BMC)

OpenManage Connections
Nagios Core and Nagios XI
Oracle Enterprise Manager
HPE Operations Manager i (OMi)

OpenManage Software
OpenManage Enterprise
OpenManage Essentials
OpenManage Mobile
OpenManage Power Center

Power Supplies
Titanium 750W, Platinum 495W, 750W, and 1100W, Bronze 450W
240HVDC 750W, 1100W 380 VDC

Security
TPM 1.2/2.0 optional
Cryptographically signed firmware
Secure Boot
System Lockdown
Secure erase

Supported Operating Systems
Canonical® Ubuntu® LTS
Citrix® XenServer®
Microsoft Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi

Storage Controllers
Internal controllers: PERC H330, H730p, H740p, HBA330, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB

Power your applications with a versatile 2-socket rack server
Satisfy a variety of applications with the flexible PowerEdge R540. Its balanced combination of resources, expandability and affordability adapt to the changing demands of a modern data center. Optimize your application performance with one-button tuning. Scale for future requirements with up to 14 x 3.5″ drives. Embedded diagnostics and SupportAssist help to maximize uptime without added effort, in a worry-free environment.

Ideal for:

Virtualization
Mail
Messaging
Video streaming
