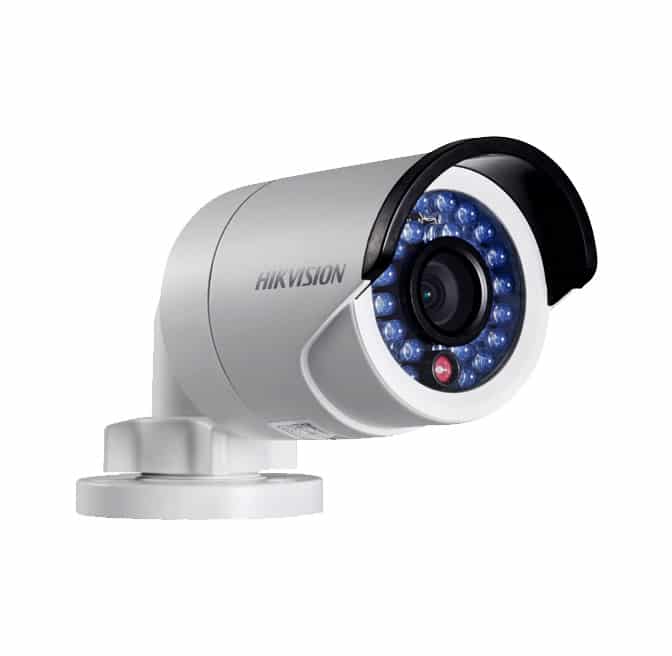

DS-2CE16D5T-IR

Camera

• Image Sensor: 2MP CMOS Image Sensor
• Signal System: PAL/NTSC
• Effective Pixels: 1920(H)*1080(V)
• Lens: 2.8mm,3.6mm,6mm optional
• Lens mount:M12
• Min. Illumination: 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
• Day/Night : IR cut filter with auto switch
• Video Frame Rate: [email protected]/[email protected]
• HD Video Output: 1 Analog HD output
• Synchronization: Internal Synchronization
• S/N Ratio: More than 62 dB
• Adjustment Range: Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
• Shutter Time: 1/25(1/30) s to 1/50,000 s

General

• Operating Conditions: -40 °C - 60 °C (-40 °F - 140 °F)Humidity 90% or less (non-condensing)
• Power Supply: 12 VDC±15%
• Power Consumption: Max. 4W
• IR Range: Up to 20m
• Dimension: Φ70×149.5 mm (Φ2.76” ×5.89”)
• Weight: 400 g
