DS-2CE56D5T-IRM

DS-2CE56D5T-IRM

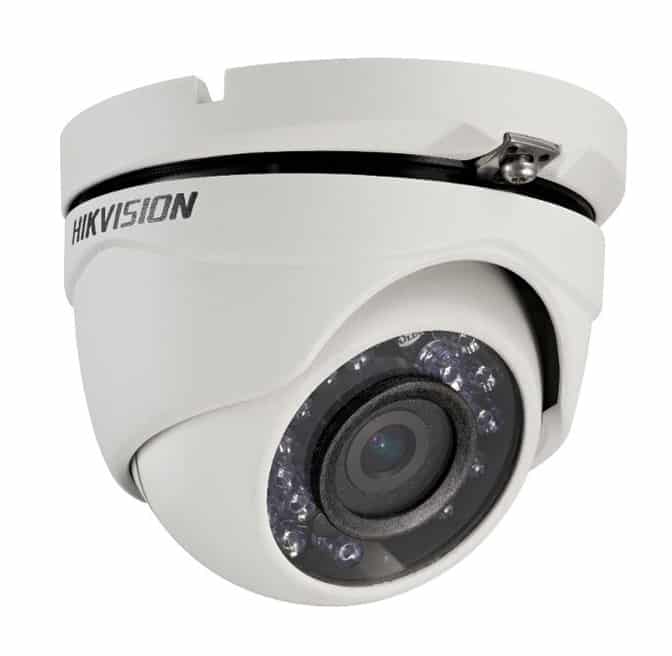

The Hikvision DS-2CE56D5T-IRM is a HD1080P Turbo HD External IR Turret Dome Camera with 3.6mm Fixed Lens utilizes HDTVI Technology enabling high definition imaging over coaxial systems. IP 66 rated for both indoor and outdoor use. For use with a HD-TVI DVR from our hikvision range. HD1080P External Camera1 / 3ÔÇØ Progressive Scan CMOS3-AxisAdopt HDTVI Technology3.6mm Lens OSD menu, 3D DNR, Smart IRDay/Night:ICRUp the Coax(via coaxial cable)12 VDCMax 20m IRIP66

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • True Day/Night
  • OSD menu, 3D DNR, Smart IR
  • True WDR, up to 120dB
  • Up to 20m IR distance
  • IP66 weatherproof
  • Up the Coax(HIKVISION-C, Pelco-C Protocol)
Camera
  • Image Sensor: 2MP CMOS Image Sensor
  • Signal System: PAL/NTSC
  • Effective Pixels: 1944(H)×1092(V)
  • Min. Illumination: 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
  • Shutter Time: 1/25(1/30) s to 1/50,000 s
  • Lens: 3.6mm (2.8mm, 6mm optional)
  • Angle of View: 82.6°(3.6mm), 103.5°(2.8mm), 54.4°(6mm)
  • Lens Mount: M12
  • Adjustment Range: Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
  • Day& Night: IR cut filter with auto switch
  • Wide Dynamic Range: 120dB
  • Video Frame Rate: [email protected]/[email protected]
  • HD Video Output: 1 Analog HD output
  • Synchronization: Internal Synchronization
  • CVBS Output: 1Vp-p Composite Output(75Ω/BNC)
  • S/N Ratio: More than 62 dB
  • Up the Coax: Support
General
  • Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
  • Humidity 90% or less (non-condensing)
  • Power Supply: 12 VDC±15%
  • Power Consumption: Max. 4W
  • Weather Proof: IP66
  • IR Range: Up to 20m
  • Dimension: 89.6 × 59.1 mm (3.53” × 2.33”)
  • Weight: 340 g
