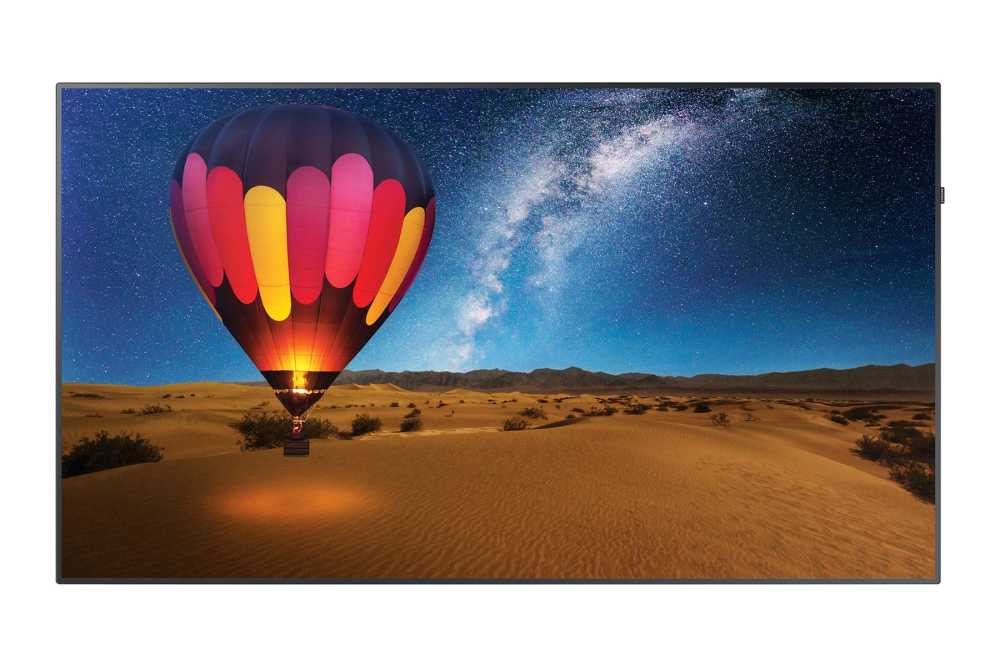

SAMSUNG Professional Display QM98F

SAMSUNG Professional Display QM98F

UHD SMART Signage that features superior picture quality and reliable 24/7 operation

UHD displays with non-glare panel that offers hyper-realistic, immersive visual experience
Support for Display Port (DP) 1.2 and SBB compatibility to display various UHD content
Flexible split-screen functionality that allows for various, dynamic scenarios

Panel
Diagonal Size
98"

Type
60Hz E-LED BLU
Resolution
3840*2160 (4K UHD)

Pixel Pitch(mm)
0.105 x 0.315 (mm)
Active Display Area(mm)
2158.848(H) x 1214.352(V)

Brightness(Typ.)
500 nit

Contrast Ratio
4000:1

Viewing Angle(H/V)
178/178

Response Time(G-to-G)
8ms (Typ)
Display Colors
16.7M(True Display) 1.07B(Ditherd 10bit)
Color Gamut
72%
Operation Hour
24/7

Haze
25%
Display
Dynamic C/R
Mega
H-Scanning Frequency
30 ~ 81kHZ
V-Scanning Frequency
48 ~ 75HZ
Maximum Pixel Frequency
594MHz
Sound
Speaker Type
Built in Speaker(10W + 10W)
Connectivity
Input
RGB
DVI-I(D-Sub Common), Display Port 1.2 (2) → Support UHD 60hz
Video
HDMI 1.4 (4)

HDCP
HDCP1.4 (→ support UHD 30hz)
Audio
Stereo mini Jack, RGB, DVI, HDMI
USB
USB (S/W update only)
Output
Audio
Stereo mini Jack
External Control
RS232C(in/out), RJ45

External Sensor
IR
Power
Type
Internal

Power Supply
AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
Max[W/h]
605

Typical[W/h]
476

BTU(Max)
N/A

Sleep mode
less than 0.5W
Off mode
less than 0.5W
Mechanical Specification
Dimension (mm)
Set
2194.2x1249.8 x76.5 (w/ handle) 2194.2x1249.8x71.3 (w/o handle)

Package
2455x1483x605
Weight (kg)
Set
80

Package
140.6
VESA Mount (mm)
900x600

Protection Glass
N/A

Stand Type
Foot Stand (Optional)

Media Player Option Type
N/A

Bezel Width (mm)
15.2/15.2/15.2
Operation
Operating Temperature
0.0 ℃ ~ 40.0 ℃

Humidity
10.0 % ~ 80.0 %
Feature
Key Features
UHD LFD Display
Special Features
H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch) S/W : FHD 4 PBP Support (2/3/4 PBP), Auto Source Switching & Recovery, LFD Home UI, Button Lock, DHCP with RJ45 MDC, Hot key option, Plug&Play (Initial Setting)"
Internal Player
Processor
N/A

On-Chip Cache Memory
N/A

Clock Speed
N/A

Main Memory Interface
N/A
Graphics
N/A

Storage (FDM)
N/A

Multimedia
N/A

IO Ports
N/A
Operating System
N/A
Certification
Safety
60950-1

EMC
Class A
Accessory
Included
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries
Optional
Stand
N/A

Mount
Yes, WMN9500SD

Specialty
N/A
Media Player
Media Player
Media Player
SBB
