Samsung SNP-6320HN/ME

Samsung SNP-6320HN/ME

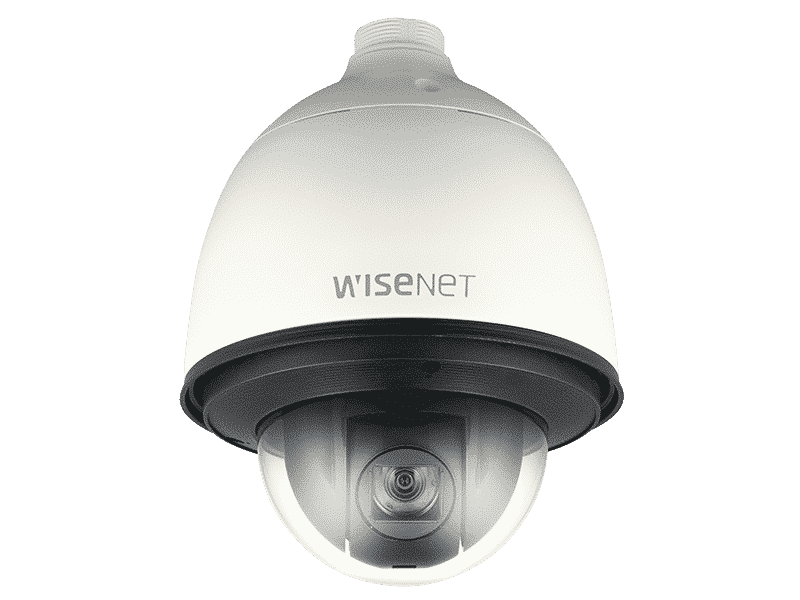

SNP-6320H
2MP Full HD 32x Network PTZ Camera
The SNP-6320H is a 32x optical zoom, 2 megapixel PTZ camera. has the ability to zoom in perfect clarity at an incredible speed allowing it to track your evidence while capturing smooth video. Ultra fast frame rate provides up to 60 frames per second for latency free clear images of moving objects. Auto tracking allows the camera to zoom in on moving objects automatically for operator-free operation. The high-speed pan/tilt mechanism allows movement up to 700 degrees/second for instant response. To meet the rigors of the outdoor environment the camera is IK10 & IP66 rated. Versatile installation is provided using PoE+ for most temperature conditions (-22°F) while 24v AC allows operation down to -58°F.

Imaging Device 1/2.8" 2.38M CMOS
Total / Effective Pixels 1,952(H) x 1,116(V), 2.18M pixels/ 1,944(H) x 1,104(V), 2.14M pixels
Scanning System Progressive
Min. Illumination
Color : 0.3Lux (1/30sec, F1.6, 50IRE) , 0.005Lux (2sec, F1.6, 50IRE)
B/W : 0.03Lux (1/30sec, F1.6, 50IRE), 0.0005Lux (2sec, F1.6, 50IRE)
Color : 0.2Lux (1/30sec, F1.6, 30IRE), 0.003Lux (2sec, F1.6, 30IRE)
B/W : 0.01Lux (1/30sec, F1.6, 30IRE), 0.0001Lux (2sec, F1.6, 30IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
LENS
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
Max.Aperture Ratio F1.6(Wide) / F4.4(Tele)
Angular Field of View H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.8˚(Wide) ~ 1.26˚(Tele)
Min. Object Distance Wide : 1.4m (4.59ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
Focus Control Auto / Manual / One push
Lens / Mount Type DC auto iris/ Board-in type
PAN / TILT / ROTATE
Pan / Tilt Range 360˚ Endless/ 210˚ (-15˚ ~195˚ )
Pan / Tilt Speed Preset : 700˚/sec,Manual : 0.024˚/sec ~ 120˚/sec
Preset / Preset Accuracy 255ea / ±0.2˚
Auto Tracking / Aut0 Run Off / On - Home, Preset, Swing, Group, Tour, Auto Pan, Schedule
OPERATIONAL
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC / HLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea rectangle zone)
Privacy Masking Off / On (32 zones of rectangle zone)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom 16x
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear,Audio detection, Face detection
Alarm I/O Input 4ea / Output 2ea (Relay)
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell,AD, Vicon, Bosch, GE
Alarm Triggers Motion detection, Tampering,Audio detection, Face detection, Video analytics,Alarm input, Network disconnection
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP,
Localstorage (SD/SDHC/SDXC) or NAS recording at event alarm triggers, External output
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10 / AVC),MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate
H.264 :Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 :Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 :Max. 30fps
Smart Codec Manual mode (Area-based : 5ea), Face detection mode
Video Quality Adjustment H.264 : Compression level, Target bitrate level control,MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR,MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack),Max output level : 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2),ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP addressfiltering, User accesslog, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Edge Storage
SD/SDHC/SDXC (SNP-6320 :micro SD type, SNP-6320H : SD type)
Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese,
Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer
Supported OS :Windows XP / VISTA / 7 / 8 / 8.1,MAC OS X 10.7 / 10.8
Supported Browser :Microsoft Internet Explorer (Ver. 8 ~ 11),Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 32),Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 Only), 5.1.7)
* Mac OS X only
Central Management Software SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature /
Humidity
24V AC :-50°C ~ +55°C (-58°F ~ +131°F) /
Lessthan ~ 90% RH
PoE+ :-30°C ~ +55°C (-22°F ~ +131°F) /
Lessthan 90% RH
-10°C ~ +55°C (+14°F ~ +131°F) /
Lessthan 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Lessthan 90% RH
Ingress Protection / Vandal Resistance IP66 / IK10 N/A / IK10 (With SHP-3701H)
ELECTRICAL
Input Voltage / Current 24V AC, PoE+ (IEEE802.3at, Class3)
Power Consumption Max. 24W (Heater off),Max. 65W (Heater on, 24V AC) Max. 20W
MECHANICAL
Color / Material Ivory / Plastic + Metal
Dimensions (WxH) Ø223.4 x 293.6mm (Ø8.8" x 11.56") Ø152.0 x 218.0mm (Ø5.98" x 8.58")
Weight 3.3Kg (7.28 lb) 2.2Kg (
