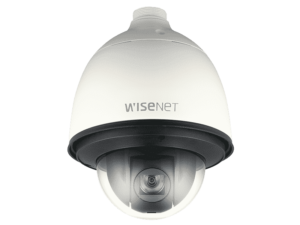

SNP-6321
2MP HD 32x Network PTZ Dome Camera
The SNP-6321 is a PTZ dome camera that provides 32x zoom at 2 megapixel Full HD resolution. This Indoor PTZ Dome camera has the ability to zoom in with perfect clarity at an incredible speed allowing you to track your evidence while capturing smooth video. Includes 32 privacy zones with zoom threshold to ensure privacy without obscuring general surveillance. Advanced features include WDR, Intelligent Video Analytics, defog, on-screen compass directions, & SDXC memory card support. Powered by PoE+ for easy installation or 24v AC low voltage.

VIDEO
Imaging Device 1/2.8" 2.38M CMOS
Total / Effective Pixels 1,952(H) x 1,116(V), 2.18M pixels/ 1,944(H) x 1,104(V), 2.14M pixels
Scanning System Progressive
Min. Illumination
Color : 0.3Lux (1/30sec, F1.6, 50IRE,AGC high) , 0.005Lux (2sec, F1.6, 50IRE,AGC high)
B/W : 0.03Lux (1/30sec, F1.6, 50IRE,AGC high), 0.0005Lux (2sec, F1.6, 50IRE,AGC high)
Color : 0.15Lux (1/30sec, F1.6, 30IRE), 0.0025Lux (2sec, F1.6, 30IRE)
B/W : 0.015Lux (1/30sec, F1.6, 30IRE), 0.00025Lux (2sec, F1.6, 30IRE)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
LENS
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32x)
Max.Aperture Ratio F1.6(Wide) / F4.4(Tele)
Angular Field of View H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.8˚(Wide) ~ 1.26˚(Tele)
Min. Object Distance Wide : 1.5m (4.92ft), Tele : 1.9m (6.23ft) Wide : 1.5m (4.92ft), Tele : 2m (6.56ft)
Focus Control Auto / Manual / One push
Lens / Mount Type DC auto iris/ Board-in type
PAN / TILT / ROTATE
Pan / Tilt Range 360˚ Endless/ 210˚ (-15˚ ~195˚ )
Pan / Tilt Speed Preset : 700˚/sec,Manual : 0.024˚/sec ~ 120˚/sec
Sequence Preset (255ea), Swing, Group (6ea), Trace, Tour (1ea),Auto run, Schedule
Preset Accuracy ±0.2˚
Azimuth Yes(E / W / S / N / NE / NW / SE / SW)
OPERATIONAL
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea rectangle zone)
Privacy Masking Off / On (32 zones of rectangle zone) with zoom threshold mosaic option
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital Zoom 16x
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis)Appear,Audio detection, Face detection
Alarm I/O Input 4ea / Output 2ea (Relay)
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Panasonic, Honeywell,AD, Vicon, Bosch, GE
Alarm Triggers Motion detection, Tampering,Audio detection, Face detection, Video analytics,Alarm input, Network disconnection
Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Localstorage (SD/SDHC/
SDXC) or NAS recording at network disconnected & event (Alarm triggers), External output
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10 / AVC),MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate
H.264 :Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 :Max. 15fps
800 x 600, 800 x 450, 720 x 576, 640 x 480, 640 x 360, 320 x 240, 320 x 180 :Max. 30fps
Smart Codec Yes Video Quality Adjustment H.264 : Compression level, Target bitrate level control,MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR,MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out (3.5mm mono jack),Max output level : 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz,
G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2),ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP addressfiltering, User accesslog, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
Edge Storage
SD/SDHC/SDXC slot forsupporting memory card
Motion Imagesrecorded in the SD/SDHC/SDXC memory card can be downloaded
NAS (Network Attached Storage)
Application Programming Interface ONVIF profile S, SUNAPI (HTTP API), SVNP 1.2, Samsung Techwin Open Platform
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer
Supported OS :Windows XP / VISTA / 7 / 8,MAC OS X 10.7
Supported Browser :Microsoft Internet Explorer (Ver. 8 ~ 11),Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25),Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
Central Management Software SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature /
Humidity
24V AC :-50°C ~ +55°C (-58°F ~ +131°F) /
Lessthan ~ 90% RH
PoE+ :-30°C ~ +55°C (-22°F ~ +131°F) /
Lessthan 90% RH
-10°C ~ +55°C (+14°F ~ +131°F) /
Lessthan 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Lessthan 90% RH
Ingress Protection IP66 N/A
Vandal Resistance IK10 IK10 (With SHP-3701H)
ELECTRICAL
Input Voltage / Current 24V AC ±10%, PoE+ (IEEE802.3at, Class4)
Power Consumption 24V AC :Max. 65W (24V AC heater on & PoE heater on)
PoE+ :Max. 25W (24V AC heater off / PoE heater on) Max. 20W
MECHANICAL
Color / Material Ivory / Plastic + Metal
Dimensions (WxH) Ø223.4 x 293.6mm (Ø8.8" x 11.56") Ø152.0 x 218.0mm (Ø5.98" x 8.58")
