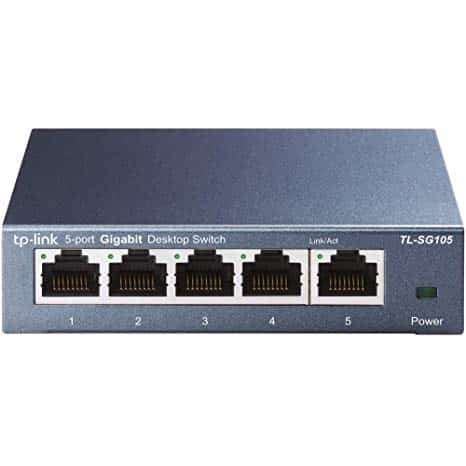

TP Link TL-SG105

Categories: , .

TP Link TL-SG105

5-port Desktop Gigabit Switch, 5 10/100/1000M RJ45 ports, steel case
5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves the power up to 84%
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS* and IGMP Snooping function
Plug and play ,no configuration needed
* For V2 and later version

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
Power Consumption Maximum: 2.4W
External Power Supply External Power Adapter (Output: 9VDC / 0.6A)
LED Indicator System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in.
(100 x 98 x 25 mm)
Max Power Consumption 2.3W (220V/50Hz)
Max Heat Dissipation 7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1Mb
Jumbo Frame 16KB
SOFTWARE FEATURES
Advanced Features Green Technology
802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method Store and Forward
OTHERS
Certification FCC, RoHS
Package Contents 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
