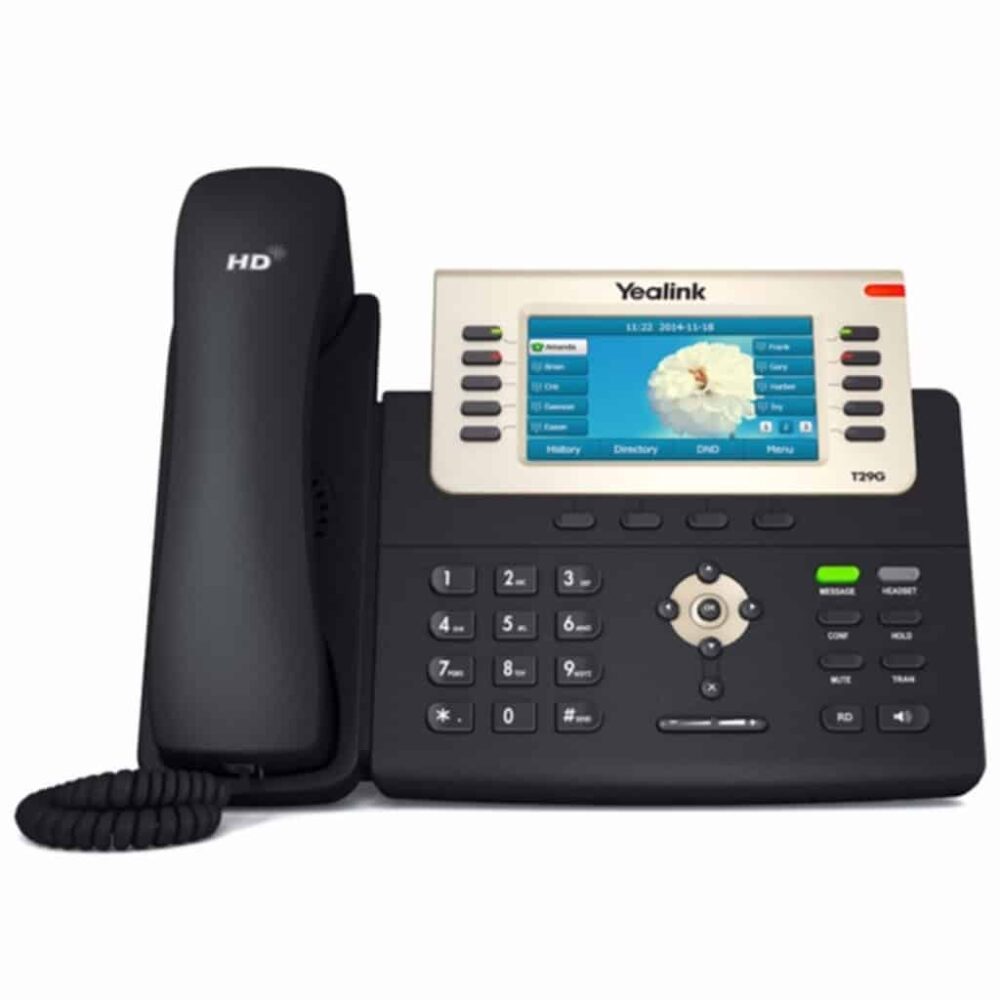

Yealink IP Phone T29G

SIP-T29G IP Phone is the most advanced model in the Yealink T2x IP terminal series. It has a high-resolution TFT color display, delivers a rich visual experience. Yealink Optima HD technology enables rich, clear, life-like voice communications. Supports Gigabit Ethernet, a variety of device connections, including EHS headset and USB. With programmable keys, the IP Phone supports vast productivity enhancing features

  • Audio Features
    > HD voice: HD handset, HD speaker
    > Codecs: AMR-WB (optional), AMR-NB (optional),
    G.722, G.711(A/µ), G.723, G.729AB, G.726, iLBC
    > DTMF: In-band, Out-of-band(RFC 2833) and SIP
    INFO
    > Full-duplex hands-free speakerphone with AEC
    > VAD, CNG, AEC, PLC, AJB, AGC
  • Phone Features
    > 16 VoIP accounts
    > Call hold, mute, DND
    > One-touch speed dial, hotline
    > Call forward, call waiting, call transfer
    > Group listening, SMS, emergency call
    > Redial, call return, auto answer
    > 3-way conferencing
    > Direct IP call without SIP proxy
    > Ring tone selection/import/delete
    > Set date time manually or automatically
    > Dial plan
    > XML Browser
    > Action URL/URI
    > Integrated screenshots
    > RTCP-XR, VQ-RTCPXR
    > USB port (2.0 compliant) for:
    Bluetooth earphone through BT40,
    Contact synchronization through BT40,
    Wi-Fi through WF40,
    USB call recording through USB flash drive
    > Enhanced DSS Key
    Directory
    > Loal phonebook up to 1000 entries
    > Black list
    > XML/LDAP remote phonebook
    > Intelligent search method
    > Phonebook search/import/export
    > Call history: dialed/received/missed/forwarded
  • IP-PBX Features
    > Busy Lamp Field (BLF)
    > Bridged Line Apperance(BLA)
    > Anonymous call, anonymous call rejection
    > Hot-desking, voice mail
    > Music on hold
    > Message Waiting Indicator (MWI)
    > Call park, call pickup
    > Intercom, paging
    > Call completion, call recording
    > Flexible seating> Executive and Assistant
    > Centralized call recording
    > Visual Voice Mail
  • Display and Indicator
    > 4.3" 480 x 272-pixel color display with backlight
    > 16 bit depth color
    > LED for call and message waiting indication
    > Dual-color (red or green) illuminated LEDs for
    line status information
    > Wallpaper
    > Multilingual user interface with icons and soft keys
    > Caller ID with name, number and photo
    > Power saving
    > Screensaver
  • Feature keys
    > 10 line keys with LED
    > 10 line keys can be programmed up to 27 various
    features (3-page view)
    > 8 features keys: message, headset, conference, hold,
    mute, transfer, redial, hands-free speakerphone
    > 4 context-sensitive “soft” keys
    > 6 navigation keys
    > Volume control keys
    > Illuminated headset key
  • Interface
    > Dual-port Gigabit Ethernet
    > 1 x USB port (2.0 compliant)
    > 1 x RJ9 (4P4C) handset port
    > 1 x RJ9 (4P4C) headset port
    > 1 x RJ12 (6P6C) EXT port: Supports up to 6 Expansion
    Modules for an attendant console application
    > Power over Ethernet (IEEE 802.3af), class 0
  • Other Physical Features
    > Color: Black
    > Stand with 2 adjustable angles
    > Wall mountable
    > External Yealink AC adapter (optional):
    AC 100~240V input and DC 5V/2A output
    > Power consumption (PSU): 1.6-3.9W
    > Power consumption (PoE): 2.1-5.7W
    > Dimension (W*D*H*T):
    244mm*213mm*185mm*54mm
    > Operating humidity: 10~95%
    > Operating temperature: -10~50°C (+14~122°F)
  • Management
    > Configuration: browser/phone/auto-provision>
    > Auto provision via FTP/TFTP/HTTP/HTTPSfor mass deploy
    > Auto-provision with PnP
    > Auto-provision with PnP
    > BroadSoft device management
    > Zero-sp-touch, TR-069
    > Phone lock for personal privacy protection
    > Reset to factory, reboot
    > Package tracing export, system log
  • Network and Security
    > SIP v1 (RFC2543), v2 (RFC3261)
    > Call server redundancy supported
    > NAT traversal: STUN mode
    > Proxy mode and peer-to-peer SIP link mode
    > IP assignment: static/DHCP
    > HTTP/HTTPS web server
    > Time and date synchronization using SNTP
    > UDP/TCP/DNS-SRV(RFC 3263)
    > QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
    > SRTP for voice
    > Transport Layer Security (TLS)
    > HTTPS certificate manager
    > AES encryption for configuration file
    > Digest authentication
    > OpenVPN, IEEE802.1X
    > IPv6
    > LLDP/CDP/DHCP VLAN
    > ICE
  • Package Features
    > Package content:
    - Yealink SIP-T29G IP phone
    - Handset with handset cord
    - Ethernet Cable (1.5m CAT5E UTP Cable)
    - Stand
    - Quick Start Guide
    - Power Adapter (Optional)
    > Qty/CTN: 5 PCS
    > N.W/CTN: 6.6 kg
    > G.W/CTN: 7.4 kg
    > Giftbox size: 295mm*224mm*115mm
    > Carton Meas: 602mm*308mm*236mm
