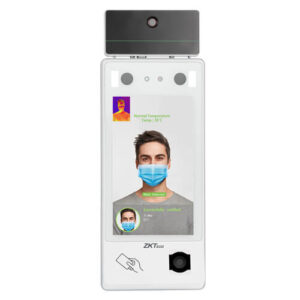

Zkteco Elite Series [TI]

Elite Series[TI] is a fully upgraded version of the Elite Series Visible Light facial recognition terminals using Thermal Imaging intelligent engineering facial recognition algorithms and the latest computer vision technology. It is a new high-level facial recognition and Thermal Imaging Temperature Detection terminal supported with ZKTeco’s customized powerful CPU and ultra-large capacity of facial templates, a maximum of 50,000 facial templates for 1:N recognition.


Face Capacity

30,000 (Standard), 50,000 (Optional)

User Capacity


Transaction Capacity


User Photo Capacity


Event Photo Capacity



Security Relay Box / Wiegand / RS485 / RS232 Slave Reader With FP / RFID / Barcode (optional) / ZKBioSecurity Software

Standard Functions

Access Levels, Groups, Holidays, DST, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver, Tamper Switch Alarm

Access Control Interface

Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor

Preventative Measures

Mask Detection
Body Temperature Detection
Temperature Measurement Accuracy: ±0.3°C (±0.54°F)
Temperature Measurement Range: 20°C to 50°C (68°F to 122°F)

Special Functions

0.3s High Speed Facial Recognition / Alive Body Detection / HTTPS Encryption (optional) / Event Snapshot


900MHz Dual Core Customized CPU / 512MB RAM / 8G Flash / 125kHz EM Reader / 13.56MHz IC (optional) / 2MP WDR Low Light Camera / Hi-Fi Audio / Microwave Distance Detection Sensor / 8″ High Brightness IPS Touch LCD / Reset Button & Tamper Switch



Power Supply

12V DC

Current Draw

< 2,000mA Algorithm ZKLiveFace 5.8 Working Temperature 20°C to 35°C (60°F to 95°F) Working Humidity ≤ 93% Storage Temperature -40°C to 65°C (-40°F to 149°F) Storage Humidity ≤93% Net Weight Elite Access[TI]'s Net Weight: 1.42kg Elite Pass[TI]'s Net Weight: 1.83kg Gross Weight Elite Access[TI]'s Gross Weight: 2.5kg to 15kg Elite Pass[TI]'s Gross Weight: 2.96kg to 18.21kg Dimension Elite Access[TI]: 144mm * 296.4mm * 28.7mm Elite Pass[TI]: 144mm * 296.4mm * 25.5mm
