Zkteco LL Series Electric Motor Lock

The electric motor lock is a new product effectively combining the advantages of traditional electric locks and electromagnetic locks and solving the problem of excessive noise of electric locks and a large amount of power consumption of electromagnetic locks.

Share:

Model

LL-01
LL-02
LL-03

Power Supply

LL-01: DC 12V
LL-02: DC 12V to 18V (please select a voltage jumper of 18V, otherwise the circuit board may be damaged)
LL-03: DC 12V

Operating Current

LL-01: 2.5A ±20%

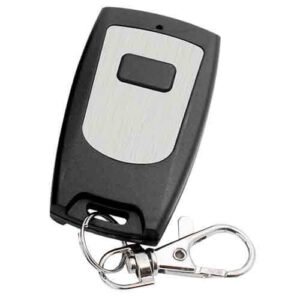

LL-02: Stand-by: < 25mA Working: 450mA ±5% LL-03: Stand-by: < 25mA Working: 450mA ±5% Access Control Interface LL-01: 2 white wire; regardless + or - LL-02: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock trigger LL-03: V+: positive electrode for power GND: negative electrode for power L-: negative electrode for unlock trigger L+: positive electrode for unlock trigger ARM+: alarm Electrical Impulse OFF: lock When the power is off, it will lock the door. Users in the locked area can unlock the door, then the lock will stay unlocked. Door Sensor LL-01: N/A LL-02: Built-in LL-03: Built-in RFID LL-01: N/A LL-02: N/A LL-03: 125kHz EM Card Operating Temperature -20°C to 60°C MCBF 500,000 times Dimension LL-01: 129.8 * 105.8 * 39.2 (mm) (L*W*H) LL-02: 128 * 96 * 43(mm) (L*W*H) LL-03: 128 * 96 * 43 (mm) (L*W*H) Gross Weight LL-01: 1.46kg LL-02: 1.5kg LL-03: 1.6kg Package List LL-01: Lock: 1 Iron key: 3 LL-02: Lock: 1 Iron key: 3 LL-03: Lock: 1 Iron key: 3 Digital remote control: 1(add or delete users) EM Card:1

Brand

ZKTECO
