Aruba 370 Series

Aruba 370 Series

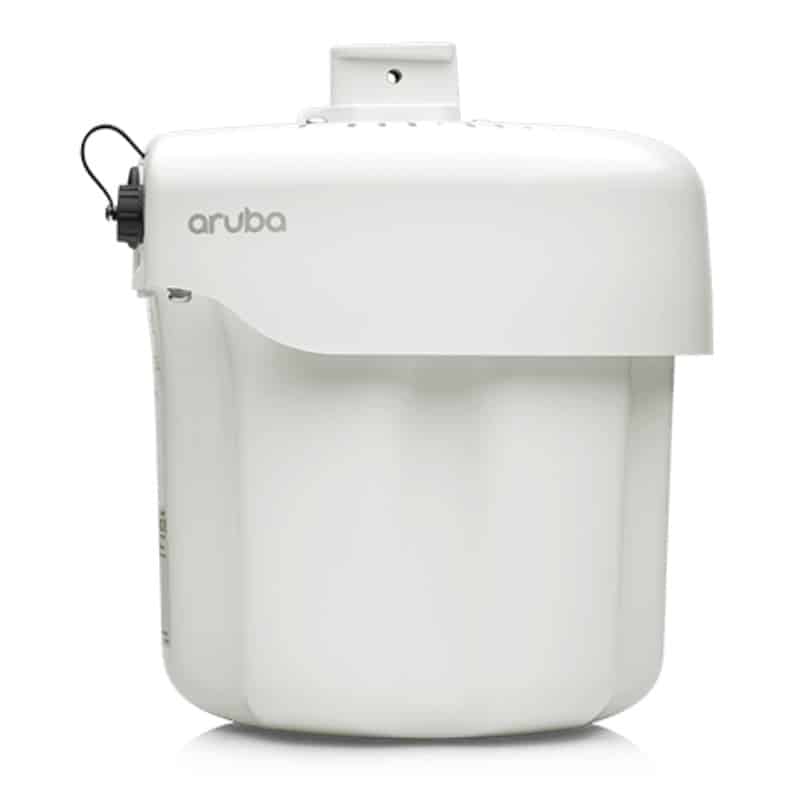

Aruba 370 series outdoor access point delivers multi-gigabit Wi-Fi to outdoor and environmentally challenging locations. It comes with a multi user MIMO, 4 spatial streams to quickly provide concurrent data transmission, maximizing data throughput and improving network efficiency. Aruba 370 series can withstand exposure to high and low temperature, tolerate constant moisture, and dust for extended periods of time. It features the ClientMatch technology and integrated blue tooth capabilities. The integrated wireless intrusion protection offers threat protection and reduce the need for separate security devices. Aruba 370 wireless access point is perfect for outdoor environments.

Features

  • ClientMatch technology
  • Wireless intrusion protection
  • Intelligent power monitoring
  • Integrated wireless intrusion protection
  • Comprehensive protection against advanced online threats
  • Deliver gigabit Wi-Fi to outdoor and extreme environments.

Customers in UAE can place the order online for Aruba 370 series wireless access point delivers through Amaze Technologies.

Description
Overview

Weatherproof and temperature hardened, Aruba 370 series access points deliver 802.11ac Wave 2 Gigabit Wi-Fi to outdoor and environmentally challenging locations.

Delivers 4×4:4SS MU-MIMO capability, Aruba’s advanced ClientMatch and an integrated Bluetooth beacon to enable Aruba location services.

UNIQUE BENEFITS
Dual Radio 802.11ac access point with Multi-User MIMO
Supports up to 1,733 Mbps in the 5 GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4 GHz band (with 2SS/HT40 clients).
Built-in Bluetooth Low-Energy (BLE) radio
Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.
Advanced Cellular Coexistence (ACC)
Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.
Industrial design for harsh indoor and outdoor environments
Sealed connector interfaces to lock out dust and moisture
Quality of service for unified communication apps
Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business with encrypted videoconferencing, voice, chat, and desktop sharing.
Best-in-class RF management
Integrated AirMatch technology manages the 2.4-GHz and 5-GHz radio bands and actively optimizes the RF environment including channel width, channel selection and transmit power.
Spectrum analysis
Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4-GHz and 5-GHz radio bands to identify sources of RF interference.
Wireless mesh
Wireless mesh connections are convenient where Ethernet drops are not available.
Intelligent app visibility and control
AppRF technology leverages deep packet inspection to classify and block, prioritize or limit bandwidth for 1,000’s of enterprise apps or groups of apps.
Aruba Secure Core
Device assurance: Use of Trusted Platform Module (TPM) for secure storage of credentials and keys as well as secure boot
Integrated wireless intrusion protection offers threat protection and mitigation and eliminates the need for separate RF sensors and security appliances.
IP reputation and security services identify, classify, and block malicious files, URL and IPs, providing comprehensive protection against advanced online threats.
Encrypted IPsec VPN tunnels securely connect remote users to corporate network resources.
CHOOSE YOUR OPERATING MODE
As unified APs, the Aruba 370 Series can be deployed with or without a controller and can be readily switched to accommodate changing network needs.
Controller mode: When managed by Aruba Mobility Controllers, Aruba 370 Series APs offer centralized configuration, data encryption, policy enforcement and network services, as well as distributed and centralized traffic forwarding or,
Controllerless (Instant) mode: In Aruba Instant mode, a single AP automatically distributes the network configuration to other Instant APs in the WLAN. Simply power-up one Instant AP, configure it over the air, and plug in the other APs – Instant Network.
Other functional modes include:
Remote AP (RAP) mode for branch deployments
Air monitor (AM) for wireless IDS, rogue detection and containment
Spectrum analyzer, dedicated or hybrid, for identifying sources of RF interference
Secure enterprise mesh
Hybrid AP serves Wi-Fi clients and provides wireless intrusion protection and spectrum analysis
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, Unified APs are factory-shipped to any site and configure themselves when powered up.

AP-370 SERIES SPECIFICATIONS
AP-374
5 GHz 802.11ac 4×4 MU-MIMO (1,733 Mbps max rate)
Four Nf connectors for external antenna operation
2.4 GHz 802.11n 2×2 MIMO (300 Mbps max rate) radios
Two Nf connectors for external antenna operation at 2.4 GHz
AP-375
5 GHz 802.11ac 4×4 MU-MIMO (1,733 Mbps max rate)
Internal Omni Antennas 4.6 dBi
2.4 GHz 802.11n 2×2 MIMO (300 Mbps max rate) radios
Internal Omni Antennas 4.0 dBi
AP-377
5 GHz 802.11ac 4×4 MU-MIMO (1,733 Mbps max rate)
Internal 80°H x 80°V Directional Antennas 6.3 dBi
2.4 GHz 802.11n 2×2 MIMO (300 Mbps max rate) radios
Internal 80°H x 80°V Directional Antennas 6.4 dBi
WI-FI RADIO SPECIFICATIONS
AP type: Outdoor hardened, dual radio, 5 GHz 802.11ac 4×4 MIMO and 2.4 GHz 802.11n 2×2 MIMO
Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5 GHz:
Four spatial stream Multi User (MU) MIMO for up to 1,733 Mbps wireless data rate to up to three MU-MIMO capable client devices simultaneously
Four spatial stream Single User (SU) MIMO for up to 1,733 Mbps wireless data rate to individual 4×4 VHT80 or 2×2 VHT160 client devices
2.4 GHz:
Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2×2 HT40 client devices
Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply):
2.400 to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz
Available channels: Dependent on configured regulatory domain.
Dynamic frequency selection (DFS) maximizes the use of available RF spectrum.
Supported radio technologies:
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
Supported modulation types:
802.11b: BPSK, QPSK, CCK
802.11a/g/n/ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Transmit power: Configurable in increments of 0.5 dBm
Maximum (conducted) transmit power (limited by local regulatory requirements):
2.4 GHz band: +22 dBm per chain, +25dBm aggregate (2×2)
5 GHz band: +22 dBm per chain, +28dBm aggregate (4×4)
Note: conducted transmit power levels exclude antenna gain.
Maximum EIRP (limited by local regulatory requirements):
2.4 GHz band:
374: 25 + Antenna Gain
375: 29 dBm EIRP
377: 31.4 dBm EIRP
5 GHz band:
374: 28 + Antenna Gain + TxBF Gain
375: 35.6 dBm EIRP
377: 36 dBm EIRP
Advanced Cellular Coexistence (ACC) minimizes interference from cellular networks.
Maximum ratio combining (MRC) for improved receiver performance.
Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance.
Short guard interval for 20-MHz, 40-MHz, 80-MHz and 160-MHz channels.
Space-time block coding (STBC) for increased range and improved reception.
Low-density parity check (LDPC) for high-efficiency error correction and increased throughput.
Transmit beam-forming (TxBF) for increased signal reliability and range.
Supported data rates (Mbps):
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15)
802.11n (5GHz): 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80, NSS = 1 to 2 for VHT160)
802.11n high-throughput (HT) support: HT 20/40
802.11ac very high throughput (VHT) support: VHT 20/40/80/160
802.11n/ac packet aggregation: A-MPDU, A-MSDU
