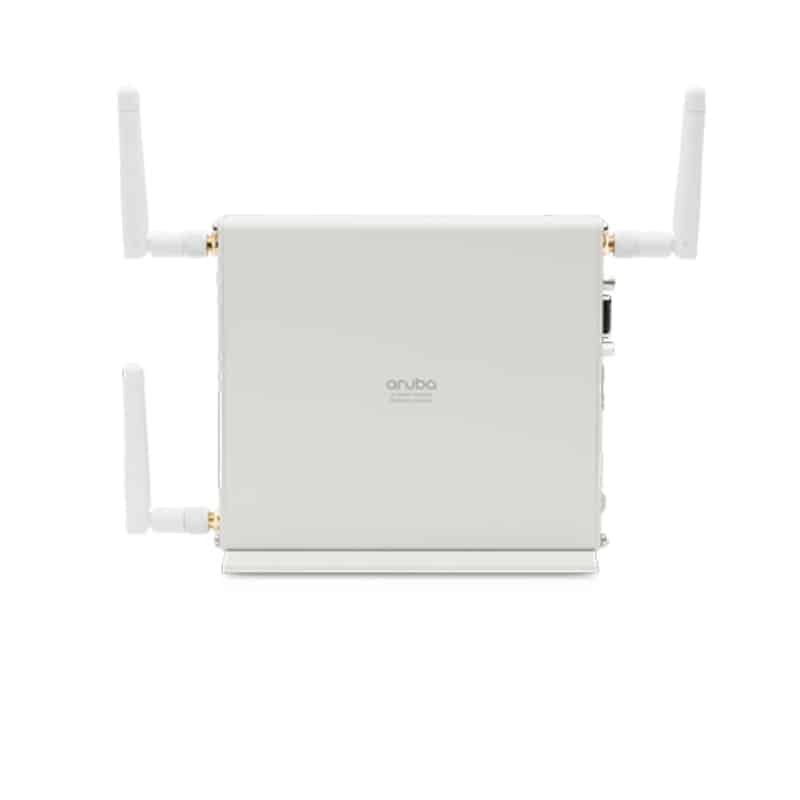

Aruba 501 Wireless Client Bridge

Aruba 501 Wireless Client Bridge

Aruba 501 Wireless Client Bridge enables you to easily integrate devices with no native wireless support into a wireless LAN (WLAN). It provides enterprise-class layered security to protect the network from intrusions. The device provides the benefit of wireless benefit to number of devices such as electronic cash registers, scales, servers, medical equipments and other devices. It connects up to 15 Ethernet enabled devices via a multi port switch. Secures the data integrity of wireless traffic.

Features

  • Anywhere wireless coverage
  • High interoperability
  • Simplifies deployment
  • Selects the channel automatically
  • Support for WLAN networks
  • Web based configuration

Customers in UAE can place the order online for Aruba 501 wireless client bridge through Amaze Technologies.

Description
Overview

This client bridge can connect up to 15 Ethernet client devices running a legacy networking protocol to the WLAN – extending wireless network access to a wide range of protocols.

An integrated serial to TCP/IP converter enables a RS-232 asynchronous terminal device to communicate with a compatible station on the network – providing the benefits of wireless mobility for devices like electronic cash registers, scales, servers, printers, medical equipment and other devices.

Hardware-accelerated encryption provides higher performance when using WPA2/AES security.

I/O PORTS AND SLOTS
1 RJ-45 autosensing 10/100/1000 port; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
1 RS-232C serial console port
CHARACTERISTICS
Radios (built-in):
802.11 a/b/g/n/ac
Radio operation modes:
Client bridge
Wi-Fi Alliance Certification:
a/b/g/n/ac Wi-Fi Certified
Antenna connector:
Three RP-SMA
Antenna:
2dBi dual-band omnidirectional
Number of external antennas: 3
Three spatial streams for up to 1.3 Gbps PHY rate
Three RP-SMA connectors for a range of antenna options
(NOTE: when using outdoor antennas, customer must supply RP-SMA to Type N adapter)
PHYSICAL CHARACTERISTICS
Dimensions:
5.5 (W) x 1.3 (D) x 5.0 (H) in (13.97 x 3.3 x 12.7 cm)
Weight:
2.01 lb (0.91 kg)
ENVIRONMENTAL
Operating temperature:
32°F to 122°F (0°C to 50°C)
Operating relative humidity:
5% to 95%, noncondensing
Nonoperating/Storage temperature:
-40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity:
5% to 95%, noncondensing
Shock and vibration:
EN 61373
Altitude:
10,000 feet (3,048 meters)
