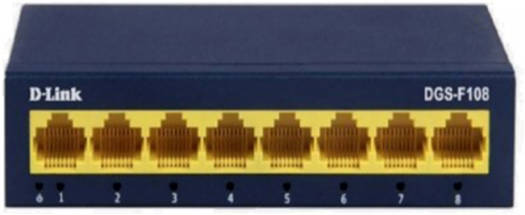

DGS-F108 is 8 port Gigabit unmanaged network switch, with 8 port Gigabit self-adaptive port, all ports support the full speed forward reach 1000Mbps each port, Provides the high reliability for the HD video monitoring, simple, economy, energy saving, high-performance, it is the best product for cybercafe, company, school and intelligence community with the video monitoring application.
Network Port
• 8 10/100/1000Mbps RJ45 port
Transmission rate
• 10 or100Mbps half duplex, 100/1000Mbps full duplex
• Network port: 100BASE-Tor 1000BASE-TX Ethernet RJ-45port
Performance
• Bandwidth: 16Gbps(no block) MAC address capacity: 4K
Frames filter and transfer rate 10Mport maximum 14,880pps
100Mport maximum 148,809pps
1000Mport maximum 148,8009pps Network protocol and standard
IEEE802.3 Ethernet standard
IEEE802.3u Fast Ethernet standard
IEEE802.3ab Gigabit Ethernet standards
IEEE802.3x Full-duplex Ethernet data link layers
LEDs indicator
Power
Each port:LINK/ACT
Power
• Input power: 100-240V,50/60HZ
• Output power: 12VDC, 1A
Environment
Operating Temperature: 0-40C(32-104F) Storage Temperature: -40C-70C(-104-158F)
Operating Humidity: 10%~90% (Non-condensing)
Storage Humidity: 5%-90% (Non-condensing)
Dimensions
• Size(LxWxH): 125x75x27mm
Weight: 0.45kg
