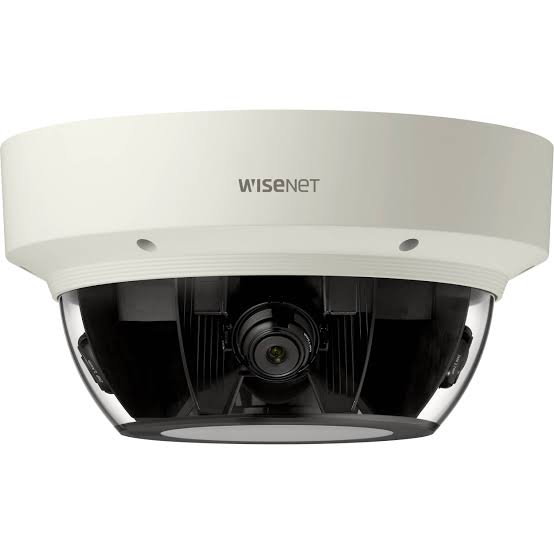

Samsung PNM-9000VQ

Samsung PNM-9000VQ

PNM-9000VQ
4x 2MP / 5MP Multi-sensor Multi-directional camera
Network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP/5MP X 4 sensors) 8MP ~20MP (2MP @ 60fps or 5MP @30fps), fixed focal lens modules, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, 4x SD card, hallway view, HLC, fog detection, DIS(Gyro Sensor), PoE+, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F)

VIDEO
Imaging Device (See the optional lens)
Total Pixels (See the optional lens)
Effective Pixels (See the optional lens)
Scanning System (See the optional lens)
Min. Illumination (See the optional lens)
S / N Ratio (See the optional lens)
Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480 (N), 720x576 (P), for installation
OPERATIONAL
Camera Title
On / Off (Displayed up to 85 characters)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency,
Auto scale by resolution
Day & Night Auto (Electrical) / Color / B/W / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
Contrast Enhancement SSDR (On / Off)
Digital Noise Reduction SSNR5 (2D + 3D noise filter) (On / Off)
Digital Image Stabilization On / Off
Defog Off / Auto / Manual
Motion Detection On / Off (8ea, 8 point polygonal zones)
Privacy Masking
On / Off (32ea, polygonal zones)
- Color : Grey / Green / Red / Blue / Black / White
- Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast Level adjustment
LDC On / Off (5 levels with Min / Max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1 / 12,000sec)
Digital Zoom 24x
Flip / Mirror On / Off, Hallway view : 90˚ / 270˚
Intelligent Video Analytics Tampering, Loitering, Directional detection, Fog detection, Virtual line, Enter / Exit,
Appear / Disappear, Face detection, Motion detection, Defocus detection
Alarm Triggers Motion detection, Video analytics, Network disconnect
Alarm Events File upload via FTP, E-Mail / Notification via E-Mail
Local storage (SD / SDHC / SDXC) at event triggers
Pixel Counter Support
NETWORK
Ethernet RJ-45 (10 / 100 / 1000 BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 Part 10 / AVC) : Main / Baseline / High, Motion JPEG
Resolution
5MP : 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720,
1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 320 x 240
2MP : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448,
720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265 / H.264 : 2M Max. 60fps, 5M 30fps at all resolutions
Motion JPEG : Max. 30fps
Smart Codec Manual mode (Area-based : 5ea)
WiseStreamⅡ Support
Video Quality Adjustment H.264 / H.265 : Target bitrate level control
MJPEG : Target bitrate level control
Bitrate Control Method H.264 / H.265 : CBR or VBR
MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
IP IPv4, IPv6
FIRST EDITION 07-2018 © 2018 Hanwha Techwin Co., Ltd. All rights reserved.
PNM-9000VQ
Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP,
ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security HTTPS (SSL) login authentication, Digest login authentication. IP address filtering,
User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 users at Unicast mode
Edge Storage
SD / SDHC / SDXC 4 slots (Each CH)
- Motion Images recorded in the SD / SDHC / SDXC memory card can be downloaded.
- Local PC for instant recording
Application Programming Interface ONVIF Profile S
SUNAPI (HTTP API)
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese,
Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer
Supported OS: Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer supported browser
: Google Chrome 54, MS Edge 38, Mozilla Firefox 49(Windows 64bit only) ,
Apple Safari 9 (Mac OS X only)
Central Management Software SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
ELECTRICAL
Input Voltage / Current PoE+ (IEEE802.3at)
Power Consumption 25.5W
MECHANICAL
Color / Material Ivory / Metal
Dimension (W x H x D) Ø 253 x 130 mm (Ø 9.96'' x 5.12'')
Weight 3.0 kg (6.7 lb)
OPTIONAL LENS
SLA-2M2400Q 1 / 2.8" 2MP, 2.4mm, H : 135.4˚/ V : 71.2˚/ D : 161.6˚
SLA-2M2800Q 1 / 2.8" 2MP, 2.8mm, H : 107.4˚/ V : 62.2˚/ D : 122.0˚
SLA-2M3600Q 1 / 2.8" 2MP, 3.6mm, H : 94.8˚/ V : 49.3˚/ D : 114.3˚
SLA-2M6000Q 1 / 2.8" 2MP, 6.0mm, H : 50.4˚/ V : 28.8˚/ D : 58.1˚
SLA-5M3700Q 1 / 1.8" 5MP, 3.7mm, H : 97.5˚/ V : 71.9˚/ D : 126.2˚
SLA-5M4600Q 1 / 1.8" 5MP, 4.6mm, H : 77.9˚/ V : 57.9˚/ D : 98.7˚
SLA-5M7000Q 1 / 1.8" 5MP, 7.0mm, H : 50.7˚/ V : 37.8˚/ D : 63.8˚
