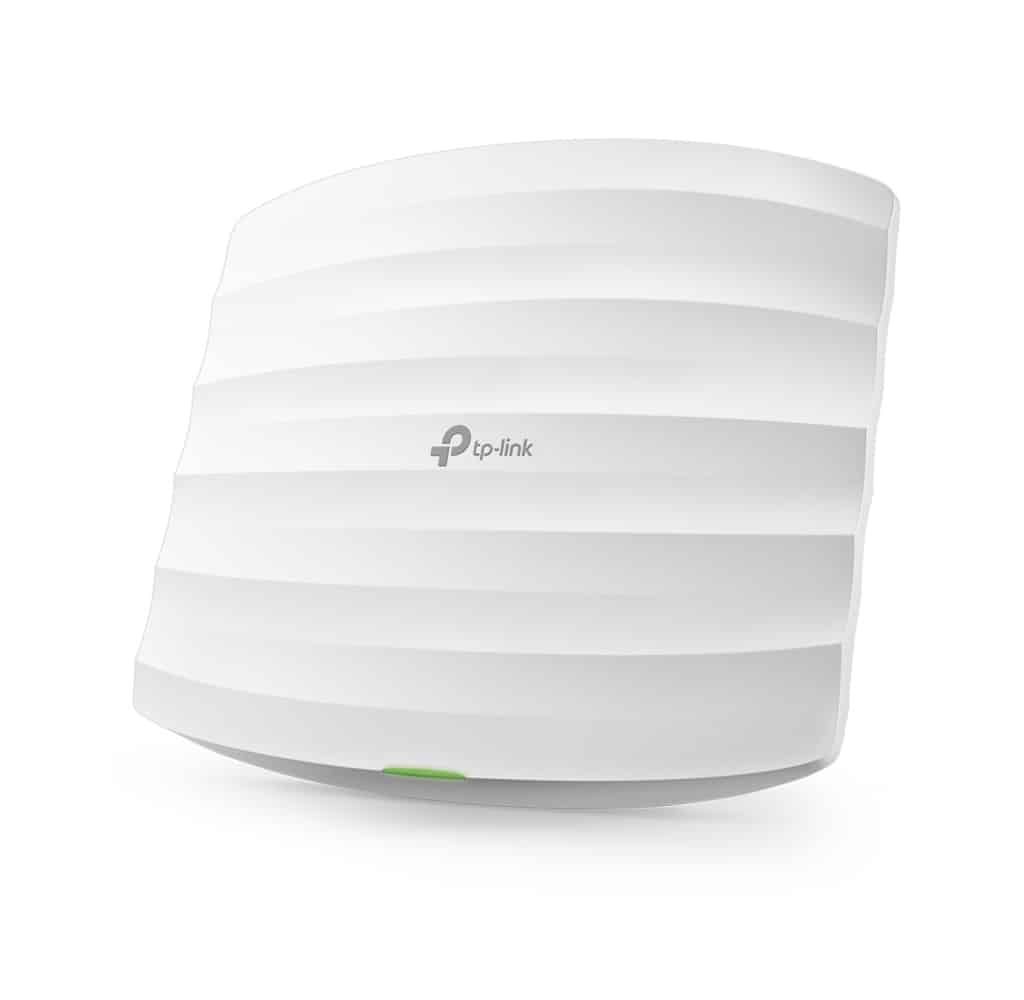

TP-Link EAP110
TP-Link EAP110
N300 Wireless N Ceiling Mount Access Point
EAP110
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports passive PoE for convenient installation up to 100meters2
- Ceiling mounting design with chassis makes it easy to deploy on a wall or ceiling
- The captive portal provides modern and professional user sign-in experience
- Facebook check-in and SMS authentication expands your social exposure with secured technology
- Multi-SSID divides multiple wireless networks for different user groups
- Enterprise class Wi-Fi security help to decrease network security threats
- Supports management VLAN for an enhanced network management
- HARDWARE FEATURES
Interface Fast Ethernet (RJ-45) Port x 1（Support Passive PoE）
Physical Security Lock Kensington Lock Slot
Button Reset
Power Supply 24V Passive PoE
(+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption 2.8 W
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions 7.5×6.8×1.2 in.
(189.4×172.3×29.5mm)
Antenna Type Internal 2 x 4dBi omni-directional
Mounting Ceiling /Wall Mounting
(mounting kit included)
- WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 300M: [email protected]% PER
150M: [email protected]% PER
54M: [email protected]% PER
11M: [email protected]% PER
6M: [email protected]% PER
1M: [email protected]% PER
Wireless Functions Multiple SSIDs （Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （adjustable in 1 dBm step）
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power 21dBm max.
