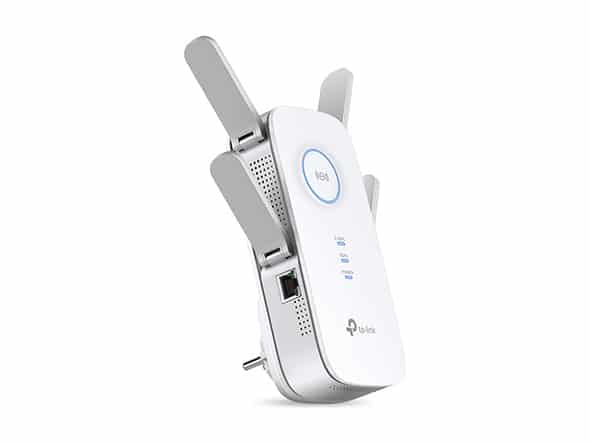

TP Link RE500

AC1900 MU-MIMO Wi-Fi Range Extender, Wall Plugged, 4 external antennas, 1 Gigabit Port, 1300Mbps at 5GHz + 600Mbps at 2.4GHz, Range Extender/AP mode, WPS, 3×3 MU-MIMO, Beamforming, Intelligent Signal Light, Access Control, Power Schedule, LED Control, Tether App

HARDWARE FEATURES
Plug Type EU, UK, US, AU
Standards and Protocols IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface 1 x 10/100/1000M Ethernet Port (RJ45)
Button WPS Button, Reset Button, LED Button, Power Button
Power Consumption 12W(max power consumption)
Dimensions ( W x D x H ) 6.4 x 3.4 x 1.6 in. (163 x 86 x 40mm)
Antenna 4 x external
WIRELESS FEATURES
Frequency 2.4GHz & 5GHz(11ac)
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 600Mpbs
Reception Sensitivity 5GHz:
11a 6Mbps:[email protected]% PER
11a 54Mbps: [email protected]% PER
11ac HT20 mcs8: [email protected]% PER
11ac HT40 mcs9: [email protected]% PER
11ac HT80 mcs9: [email protected]% PER
2.4GHz
11g 54M: [email protected]% PER
11n HT20 mcs7: [email protected]% PER
11n HT40 mcs7: [email protected]% PER
Transmit Power <20dBm(2.4GHz)
<23dBm(5GHz)
Wireless Modes 5GHz:
11a 6Mbps:[email protected]% PER
11a 54Mbps: [email protected]% PER
11ac HT20 mcs8: [email protected]% PER
11ac HT40 mcs9: [email protected]% PER
11ac HT80 mcs9: [email protected]% PER
2.4GHz
11g 54M: [email protected]% PER
11n HT20 mcs7: [email protected]% PER
11n HT40 mcs7: [email protected]% PER
Wireless Functions Wireless Statistic
Concurrent Mode boost both 2.4G/5G WiFi band
Access Control
LED Control
Domain Login Function
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
OTHERS
Certification FCC, RoHS
Package Contents AC1900 Wi-Fi Range Extender RE500
Quick Installation Guide
Box Dimensions (W X D X H) 7.9 x 4.9 x 3.8 in. (202 x 125 x 97mm)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
